LIMENTE 894 screwfast screwfast | 2 x Shuko / 1 x Shuko + RJ45 / 1 x Shuko + TV-SAT-R / 2 x Shuko + 1 x RJ45 double + 1 x TV-SAT-R

Floorsocket 894RUUVI

Limente floor sockets offer a stylish and timeless solution for distributing electricity, data, and antenna signals in all kinds of locations. Floor sockets are particularly convenient in car dealerships, supermarkets, stores, offices, commercial spaces, ships, and even in homes around kitchen islands. The washable and drive-over sockets are especially suitable for larger open spaces such as hypermarkets, car dealerships, cafes, and restaurant customer areas. Sockets intended for dry indoor installations are designed for offices and meeting or office spaces.Read more

All Limente floor sockets are made with either aluminum or stainless steel frames, and their covers can be metal or the same material as the floor (carpet, wood, stone, laminate, parquet, etc.)

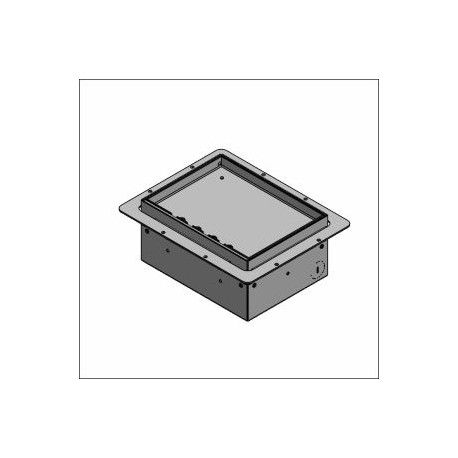

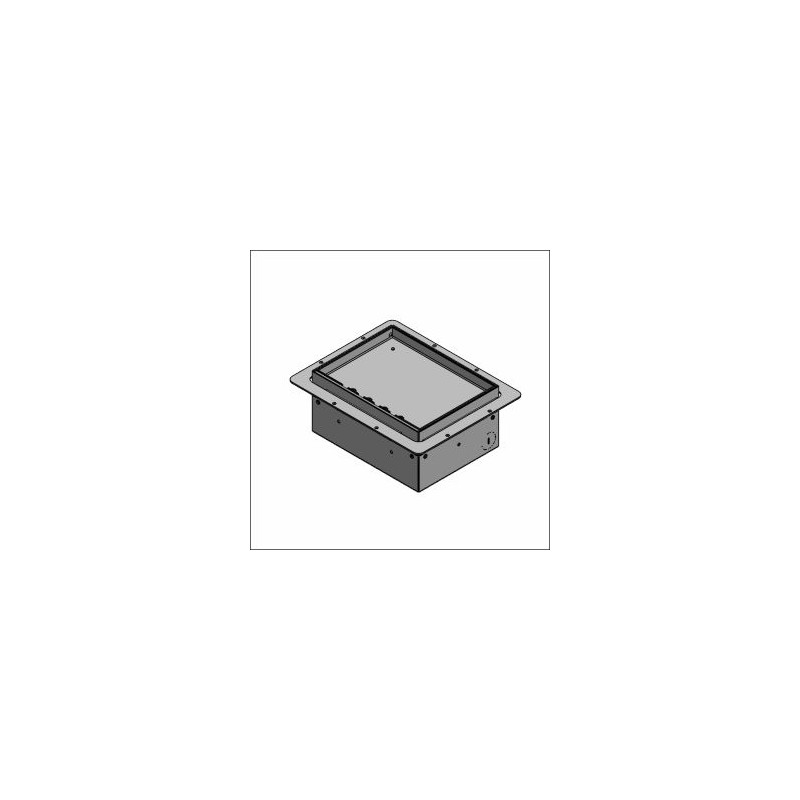

The sockets of the 894RUUVI series are floor sockets equipped with a removable hinged cover, designed for raised floors. The frame on the socket cover has a recess for flooring material up to 15 mm thick (e.g., carpet/laminate).

Socket content options

A socket can be equipped as follows (other connectors are available on special order):Read more

- with four Shuko sockets (240V, 16A)
- with three Shuko sockets and one dual RJ45 connector (CAT6A)
- with three Shuko sockets and one TV-SAT-R connector (SAT 950-2400 MHz)
- with two Shuko sockets (240V, 16A), one dual RJ45 connector (CAT6A) and one TV-SAT-R connector (SAT 950-2400 MHz)

Installation and Electrical Connection

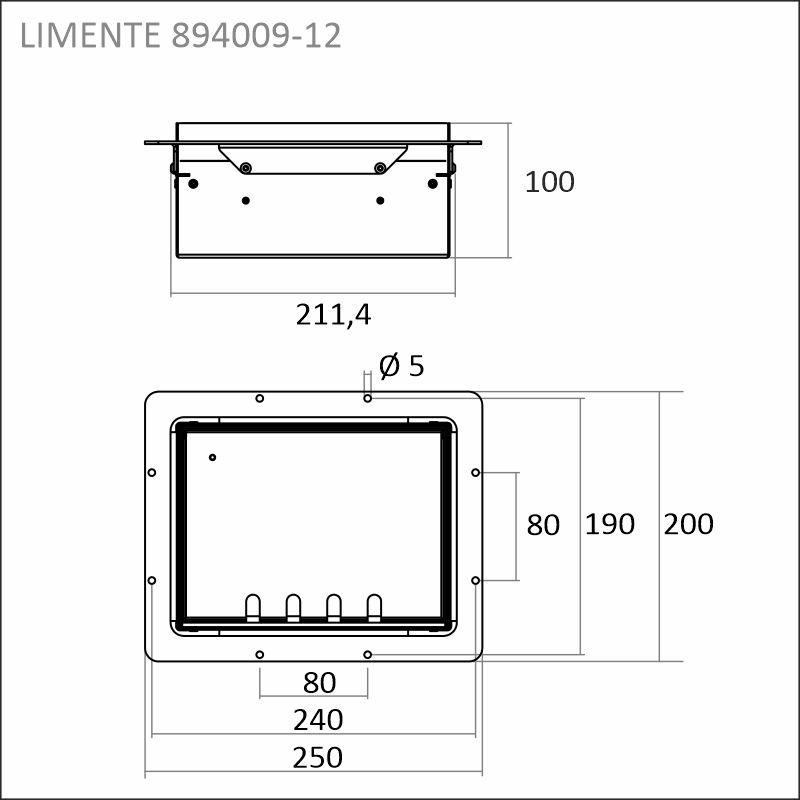

The socket is installed as part of the floor by screwing it in place. The socket has a 200 x 200mm collar with 6 x 5mm holes for screw mounting. When installing on a raised floor, the flooring material goes on top of the collar.Read more

The socket has six 26mm entry holes for the supply cable. The socket's IP rating of IP20 requires that the entries use sleeve seals with at least an IP20 rating or are otherwise sealed tightly.
