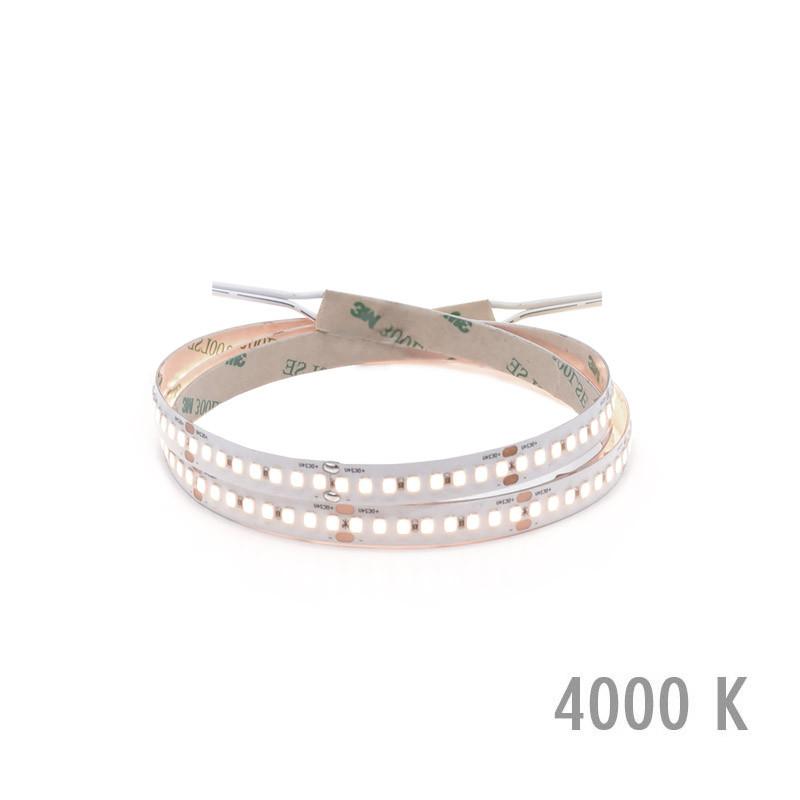

LIMENTE RIBBON COM 24 V, 3000K/4000K, IP44 | 192 led/m, 1400 lm/m, CRI>85

Reference: RIBBONCOM
Supplier reference:
RIBBON-COM 3000K/4000K

47,12 €(38,00 € tax excl)

Ref: Supplier ref: Product variations: Availability Add to brochure:
682410 4143118 RIBBON IP44, 2,0m, 3000K: Availability date: 03/21/2024 MyLimente 682411 4143119 RIBBON IP44, 4,0m, 3000K: Availability date: 03/21/2024 MyLimente 682326 4129643 RIBBON IP44, 2,0m, 4000K: In stock MyLimente 682327 4129644 RIBBON IP44, 4,0m, 4000K: Availability date: 03/12/2024 MyLimente LED28030 4009738 Driver 30 W: In stock MyLimente LED28060 4009740 Driver 60 W: In stock MyLimente LED28100 4009741 Driver 100 W: In stock MyLimente 681588 4009731 Extension cord 3,0 m: In stock MyLimente

A versatile LED strip

Powerful work and mood lighting with LEDs very close to each other (192 LEDs / meters). The ribbon is used in kitchen lighting as an indirect light, for example behind the mirrors, in plinths, in furniture, in ceilings, and anywhere where the lamp needs to be as invisible as possible. LIMENTE LED-RIBBON can be shortened between 3,3 mm. All LED-strips should always be installed on a heat conducting surface like LIMENTE LIGHT PROFILE to quarantee the lifetime of LED’s.


RIBBON IP44 COM is available in two models: 3000 K efficiency of 115 lm/W and a luminous intensity of 1380 lm/m while the 4000 K efficiency of 126 lm/W and a luminous intensity of 1512 lm/m (small colour temperature differences might exists). Both LED-strips has a high-quality LEDs with a colour index of Ra> 85. In addition to this standard model, the LIMENTE LED RIBBON is available as a LUX model (3000 K and 4000 K) and an adjustable CCT model (2700 K - 6000 K).

For all models, the length options are 2 meters and 4 meters. Both ends of the ribbon have a standard 5 cm + 300 cm long cord. If this is not enough, you can order an extension cord (3 m), item number 681588. Extension cables can be connected up to 1 pcs / light fixture, allowing a cable length of up to 6 m. At both ends, the current power supply cable makes it possible to use the LED RIBBON in two parts. This avoids unnecessary waste and allows the tape to be installed from the power supply in two directions. N.B.! The power supply must be ordered separately.

Dimming and lightcontrol

By adjusting the lights, it is easy to create appropriate lighting for different occasions. By dimming LIMENTE LED-RIBBON you can change your home’s lighting from efficient and bright to dim and cosy. You can use the same switch to adjust all the LIMENTE lights in the room, including various ceiling-, panel- and profile lights. The lamps adjust smoothly at the same time, while simultaneously changing the ambience of the space.


LIMENTE RIBBON is dimmable either with LIMENTE SMART CLASSIC, LUXUS ja GREENLINE series 24V dimmer (no. 640540) and wireless wall switches (no. 640541, 640542, 640543, 640544, 640546 and 640547). The dimmer is installed between the power supply and the fixture. The dimmer includes a similar manifold to the one included in the power supply. You can connect up to 6 LIMENTE lights to one dimmer, as long as the maximum load (W) of the power supply is not exceeded.

The lamp is also dimmable with a Dali driver (LEDDALI100). The driver is controlled by either a 240 V Dali controller or a push button switch, utilizing the "Push Dim" function.

Installation

The LIMENTE LED-RIBBON tape is fast and easy to install.


The power supply cable, often hidden behind the cabinet, is put in place so that the male connector comes close to the power source and the female near the LED-RIBBON light strip. The light tape is pressed into the desired surface using 2-way tape and finally the power supply cable is pressed against the light strip and the power supply. All electrical connections are made simply by quick connectors.

The LED-RIBBON can be trimmed at 3,3 cm intervals and at both ends there is a power supply, so you can use both ends separately if wanted. LED-RIBBON should always be attached to heat-conductive material such as an optional LED-LIGHT LIST. This will ensure long lifetime of the LED-tape. The list also allows for installation under a drying cabinet, and its protective matt glass makes the light even more smooth. In all cases, make sure that the fastening surface is absolutely clean and dry before attaching the LED-strip.

Package contents

- led-ribbon, with connectors at both ends
- 2 x 3m power cord with TOP connector

Technical data

Light source
LED
Installation
Surface mounting
Lifetime
84.000h​ (L70B50)
Lifetime
36.000h (L80B10)
Enclosure class
IP44
Voltage
24 V DC
