LIMENTE LUXA-32 (4-in-1) socket, black | with integCRIted 24 V led driver and switch
Installation and maintenance instructions

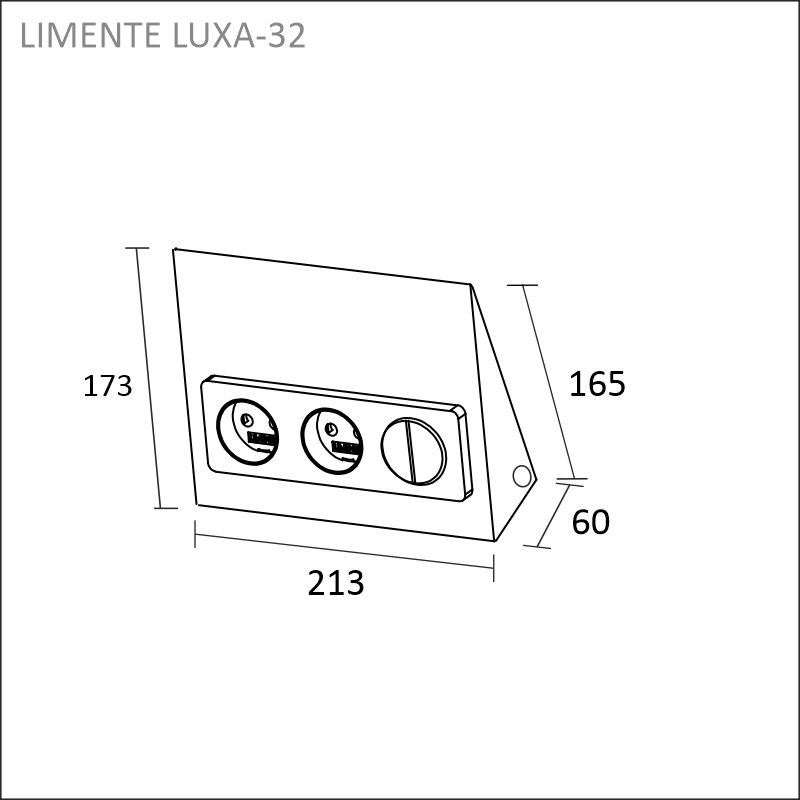

Measurements

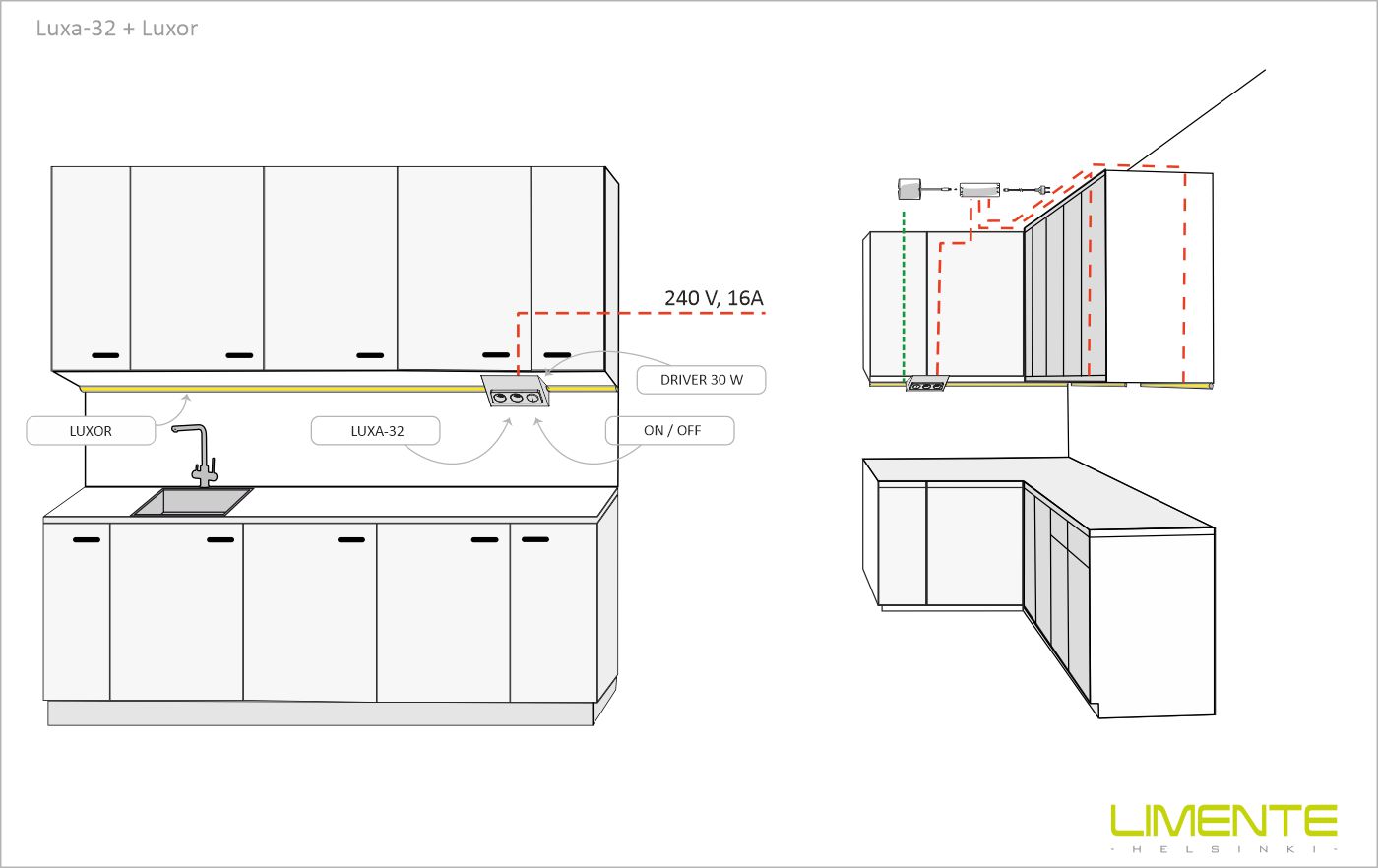

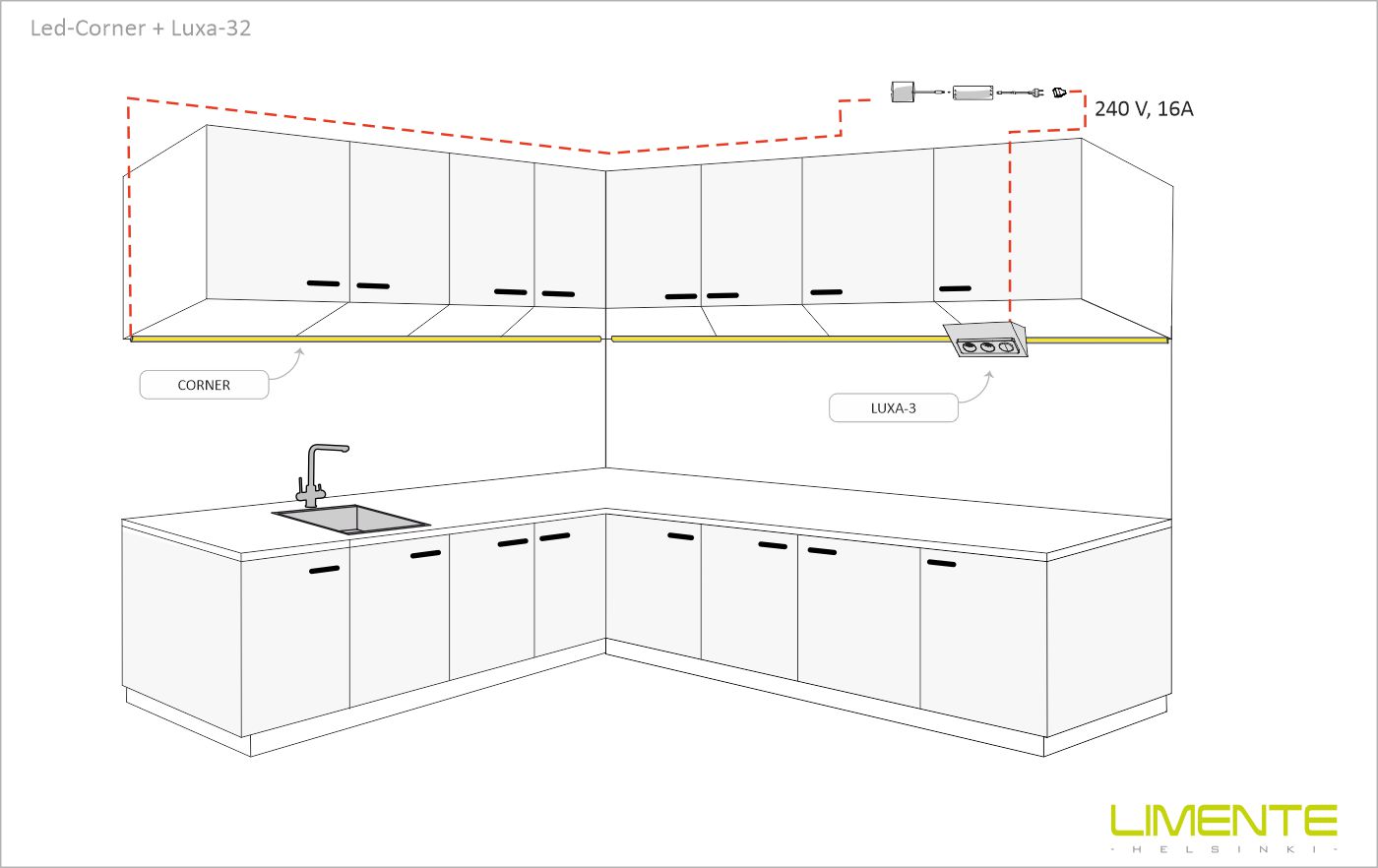

Assembly pictures

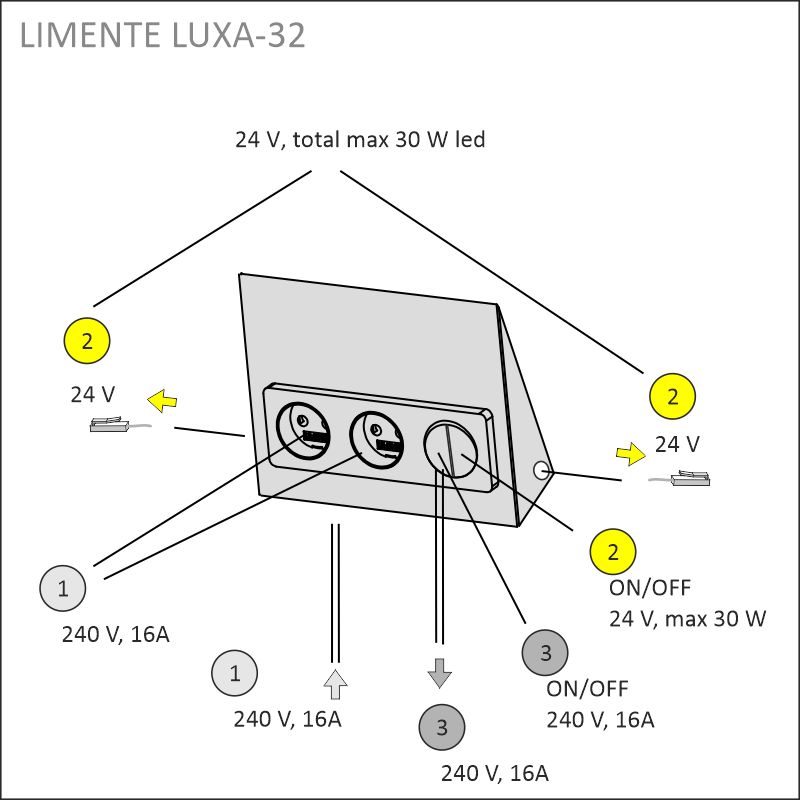

A double power socket with 24 V controllable led driver

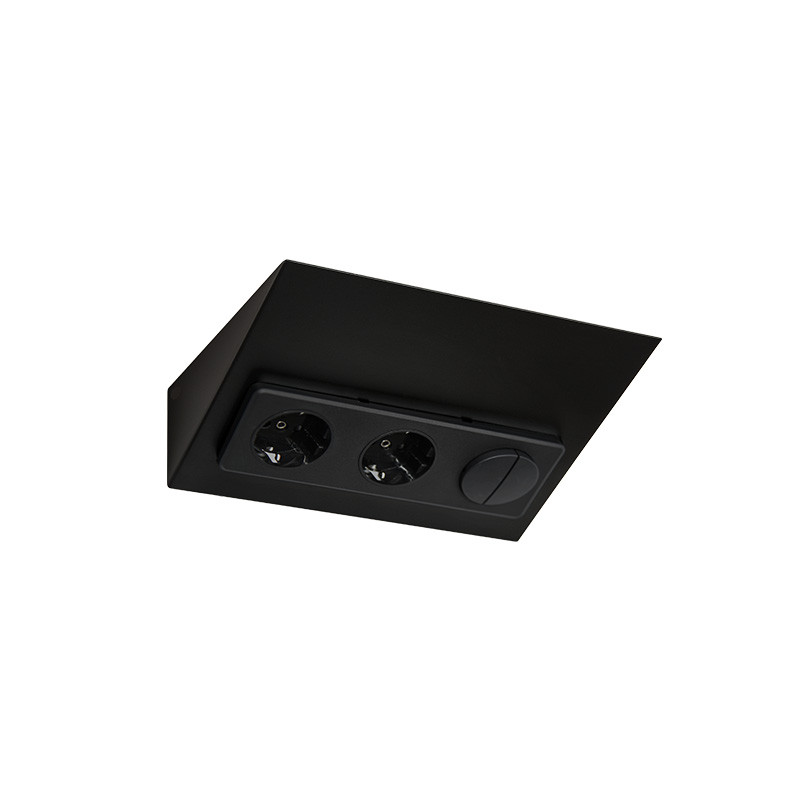

Color options
Available colors for Luxa-32 are white, stainless steel and black.
White is painted with a semi-glossy paint and black is painted with matte black paint. All sockets are with metal housing.
Installation
Determine the place, where the power supply will be imported, or use an existing power supply cable. The socket must be installed in a corner ensuring the back sides of the socket do not remain open to exposure. The mounting takes place with the supplied screws. Please see further instructions in the installation guide.
The maximum permitted current supply of the LIMENTE LUXA socket is 16A. You can chain the supply to another socket directly from the supply connector, but pay attention to the distribution of the current. Connect the power supply cable into the connectors of the outlet. Finally, attach the outlet to a solid surface using the screws supplied. Please see further instructions in the installation guide.
Package contents
Technical data
