MONO-2 socket | white / s/s / black / brushed gold / tin / bronze / champagne

Reference: MONO2
Supplier reference:
MONO-2 socket

184,76 €(149,00 € tax excl)

Ref: Supplier ref: Product variations: Availability Add to brochure:
631751 2529527 MONO-2, s/s: In stock MyLimente 631753 2529528 MONO-2, champagne: In stock MyLimente 631752 2529529 MONO-2, brushed gold: In stock MyLimente 631757 2529530 MONO-2, bronze: In stock MyLimente 631756 2529531 MONO-2, tin: In stock MyLimente 631755 2529533 MONO-2, white: In stock MyLimente 631759 2529534 MONO-2, black: In stock MyLimente

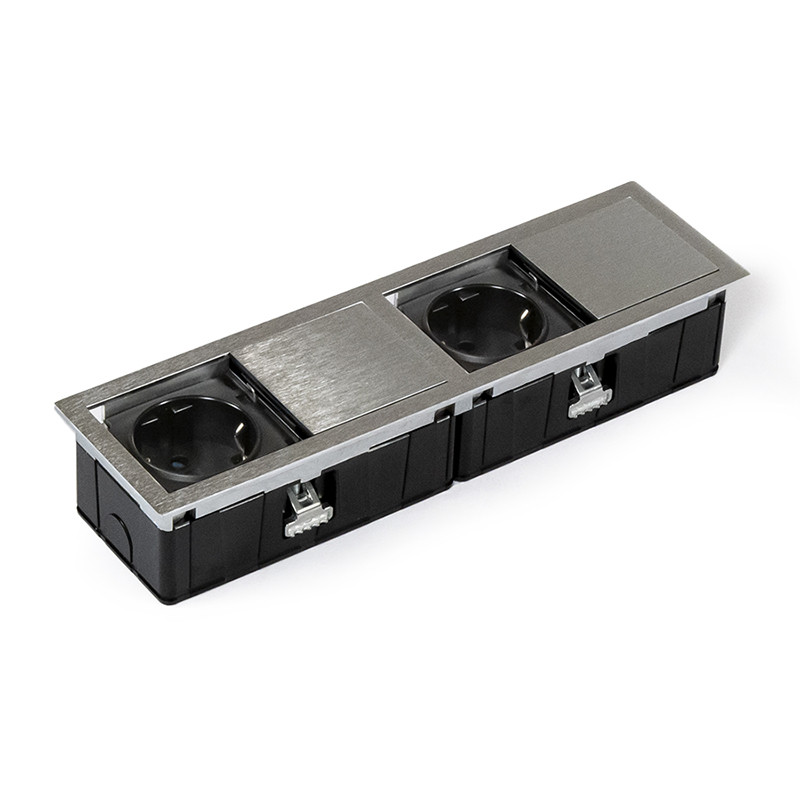

A low, recessed power socket

MONO-2 and MONO-2USB are extremely low power sockets designed to be installed in tabletops, shelves and other furniture. Due to its small and low design MONO-2 and MONO-2USB can also be used in separate, loose furniture, such as tables, couches or bookshelves.


The power socket includes dustcover to cover the sockets, which makes the table top even when the power socket is not in use. MONO-2 and MONO-2USB have a classification of IP54 and can be used in humid conditions.
MONO-2 includes two sockets and MONO-2USB one socket and two USB (A+C) connectors. You can either use the sockets separately or at the same time. When only one of them is in use, the other is covered from crumbs and litter. When not in use, the socket is flat and even, making the table top appear even and solid.

MONO-sockets are also available in square two-part DESK2 and the long MONO-1 with one socket or two USB connectors.

Color options

MONO-2 and MONO-2USB are made of metal and available in several different colors: stainless steel, black, white, bronze, brushed gold, tin and champagne.

Installation

MONO-2 and MONO-2USB are quick and easy to install.

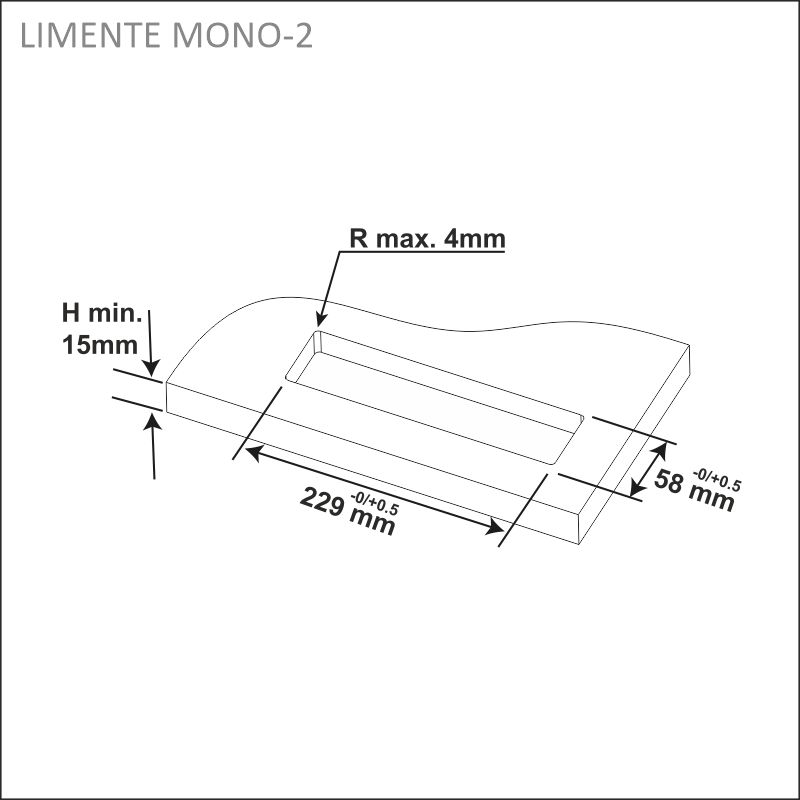

The socket must be installed on a surface with a material thickness of at least 15 mm. There is no upper limit to the material thickness if it is a wooden surface, but if it is a stone or glass surface, the material thickness must be between 15mm-20mm. Make a square hole in the table top or kitchen island, into which the power socket is attached with integrated attachment brackets. One end of the power supply cable (included in delivery) is connected to MONO-socket, the other into a grounded power socket. To make installation easy, the plug is included separate and is attached at the installation location.

If the outlet, to which MONO is connected, is connected to a 10 A fuse, that’s also the maximum load of MONO. If the fuse is 16 A, is the maximum load of MONO also 16 A. The power of the USB model is divided between the USB-A and USB-C port depending on the use, 5V / 2.4A - max. total power 12W. The power consumption of USB ports in Mono sockets in standby mode is <0.1W.

Package contents

- socket with 2m supply cable
- grounded plug

Technical data

Material
Zinc
Installation
Flush mounting
Installation
Cable coupling
Enclosure class
IP54
Voltage
240 V
Warranty months
24
Pinch time
16 A
