Closet set NeonMini-35 4m with door sensor | 4000 K, 255 lm/m, CRI>90

Slim NEON Mini-35 closet set with door sensor

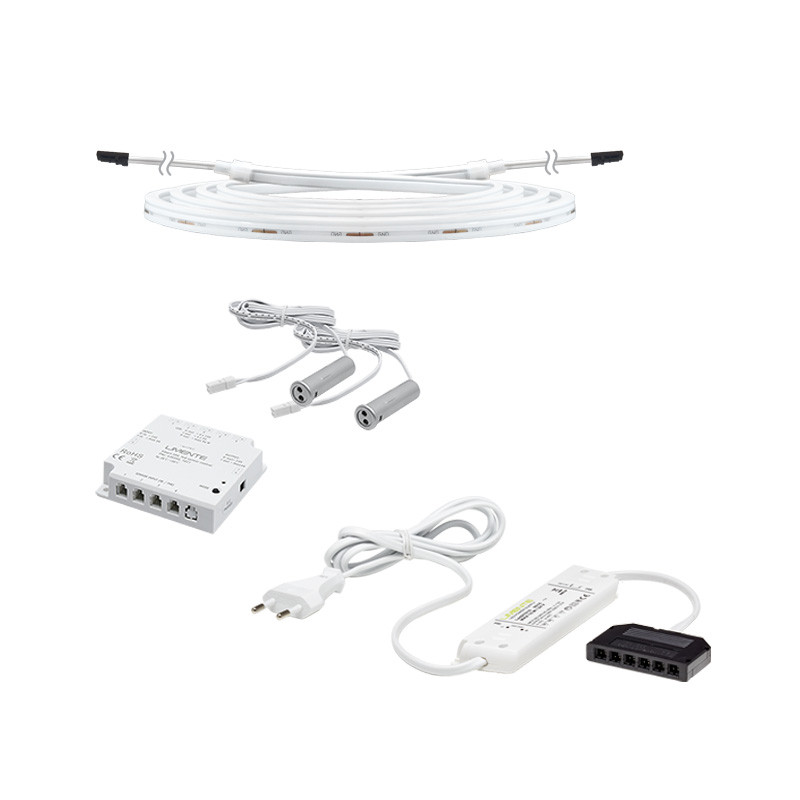

LIMENTE NeonMini cabinet set is a versatile solution that includes everything you need to equip your cabinet. The set includes a strip, driver and sensor that turns on the lights when you open the cabinet door.

The cabinet set is specifically designed for mood lighting and applications where the light fixture needs to be recessed into the interior, remaining virtually invisible. The NeonMini is an exceptionally small strip, measuring only 3 x 5 mm. It is ideal for installation in grooves on the sides of closets, furniture, and for plinth or countertop accent lighting.

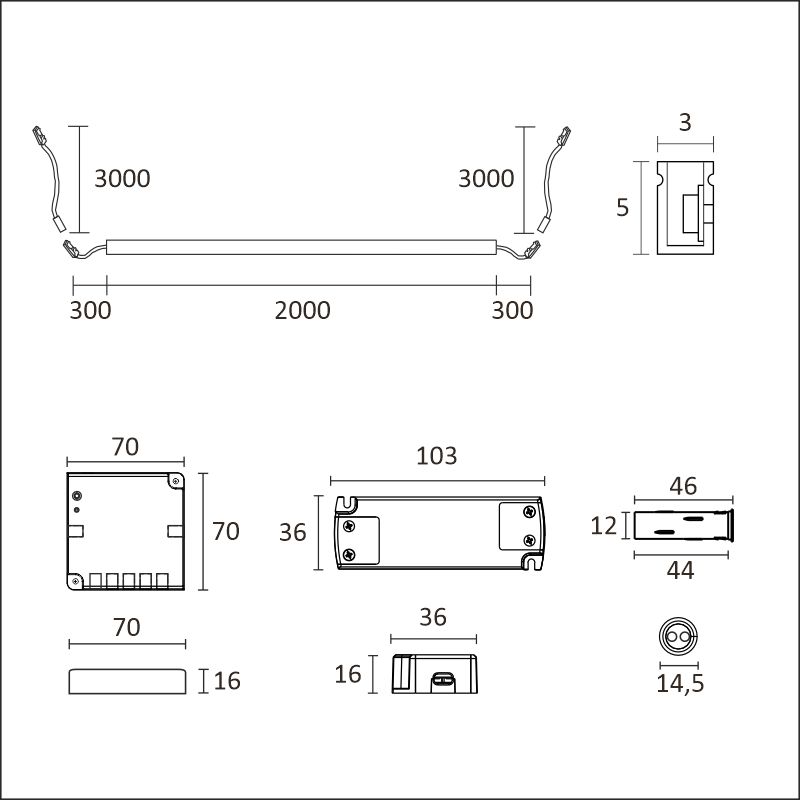

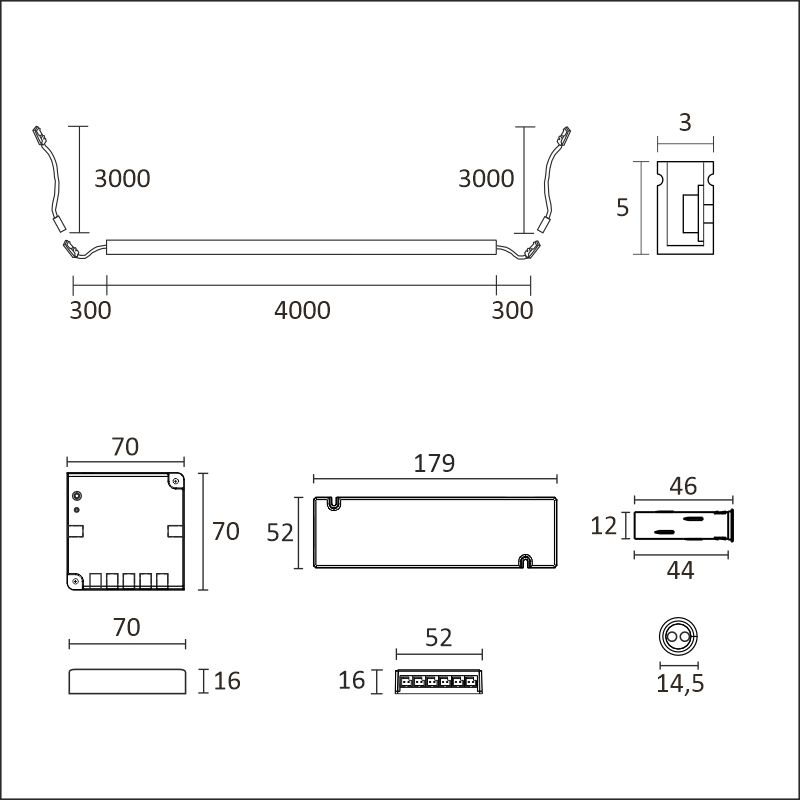

LIMENTE NeonMini cabinet set are available in lengths of 2 m and 4 m and can be shortened to a desired length at about 2 cm intervals, which enables all kinds of individual solutions. They feature a high color rendering index of CRI >90, ensuring that the colors of the illuminated object appear as natural as possible. The color temperature is selectable at either 3000 K or 4000 K.

Adjusting the lighting

The LIMENTE NeonMini cabinet set is dimmable with the LIMENTE SMART 512 IR door switch. LIMENTE SMART 512 IR door switch acts as an automatic door ON / OFF switch or when used as a door switch, the switch turns on the lights when the door is opened and turns them off when the door is closed.

The LIMENTE SMART SENSOR electronic unit has a memory that keeps the lights in the setting they were last set to (e.g. off), even if the unit is momentarily without power, e.g. during a power outage.

Installation

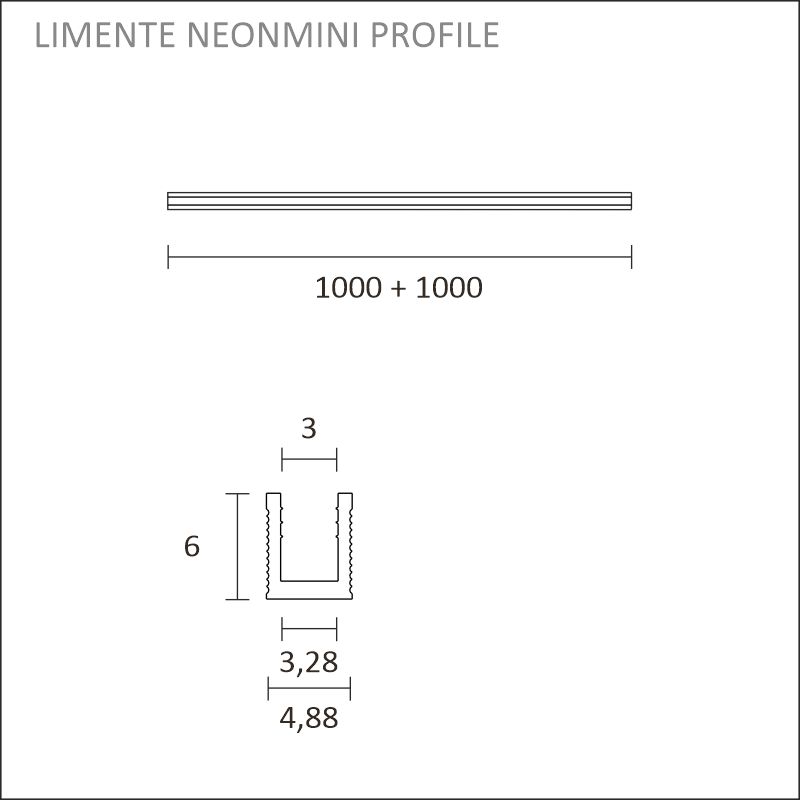

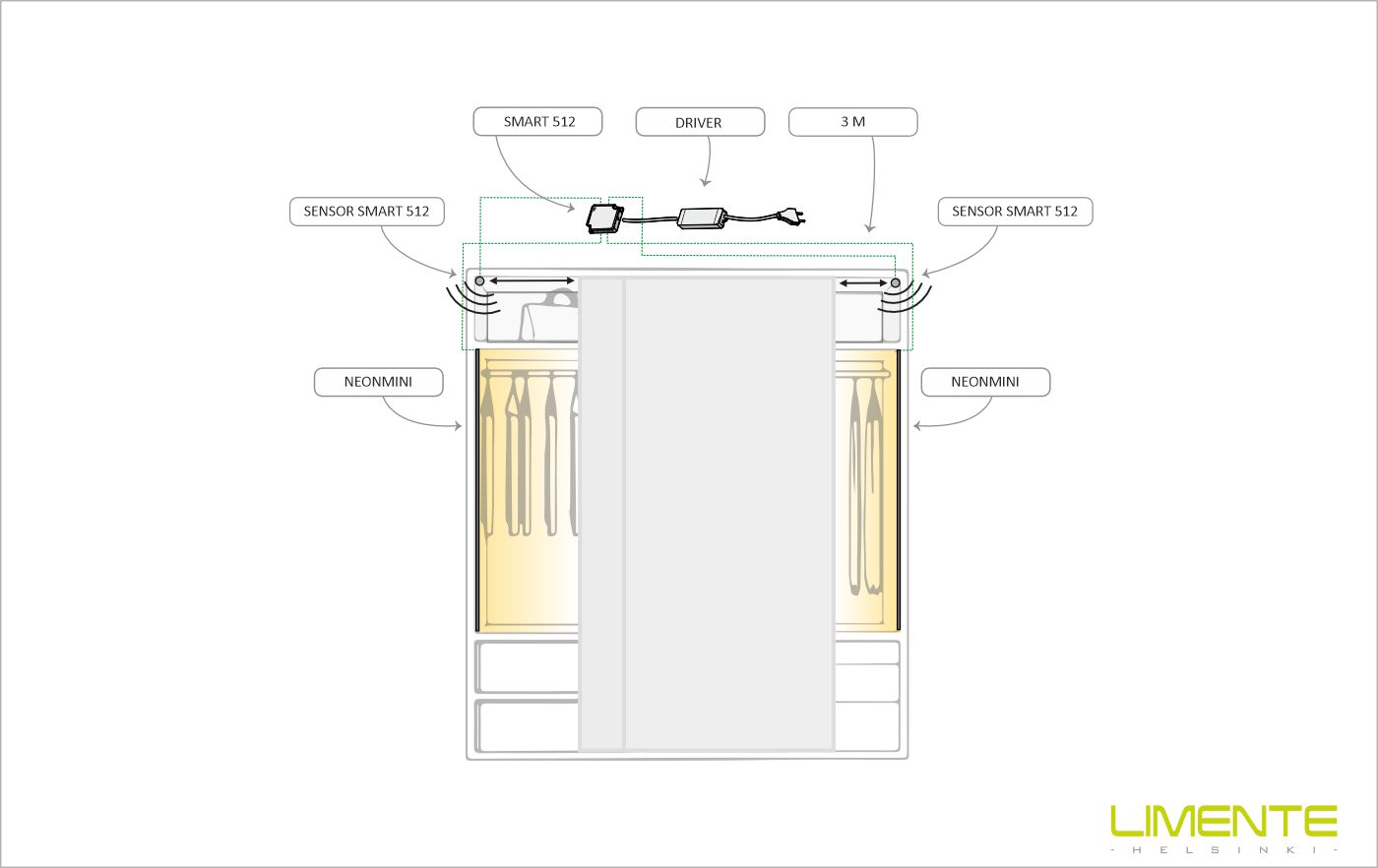

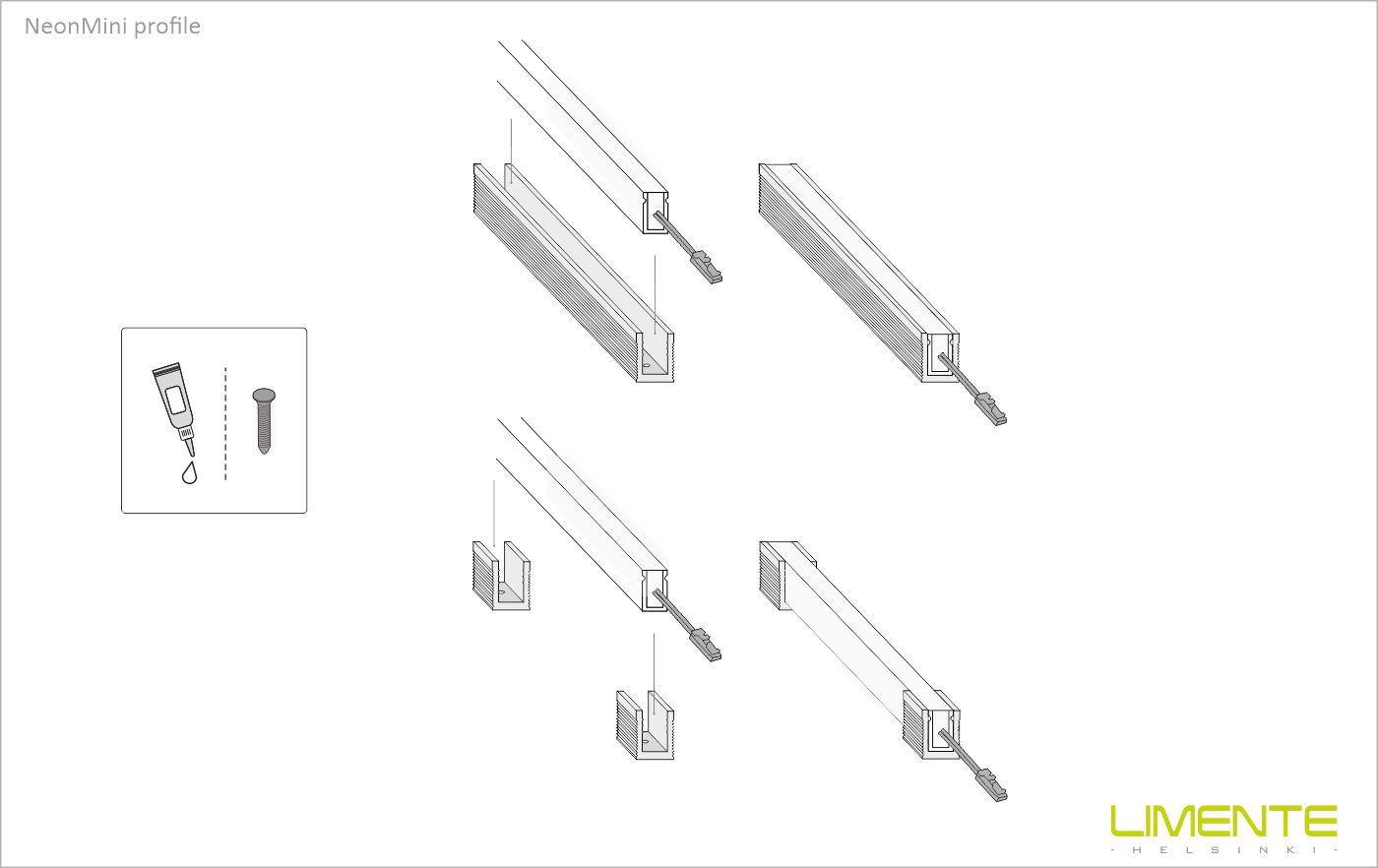

The LIMENTE NeonMini cabinet set is fast and easy to install. The power supply cable is put in place (e.g. hidden behind a cabinet) so that the male connector comes close to the power supply and the female connector comes near the NeonMini strip. The Neon strip is pressed into place. Finally, connect the power supply cable to the light strip and to the power supply. NeonMini strips must always be installed either into a groove made in the surface or into an optional Neon profile.

The NeonMini strip can be shortened to a desired length at about 2 cm intervals. The 2 m and 4 m strips come standard with a 30 cm + 300 cm cable at both ends. If this is not sufficient, you can order an extension cable (3 m), product number 681588. A maximum of one extension cable can be connected per fixture cable, bringing the maximum total cable length to six meters. The power supply cable at both ends allows the strip to be used in two separate parts. This approach prevents unnecessary waste and enables the strip to be installed in two different directions from the power source.

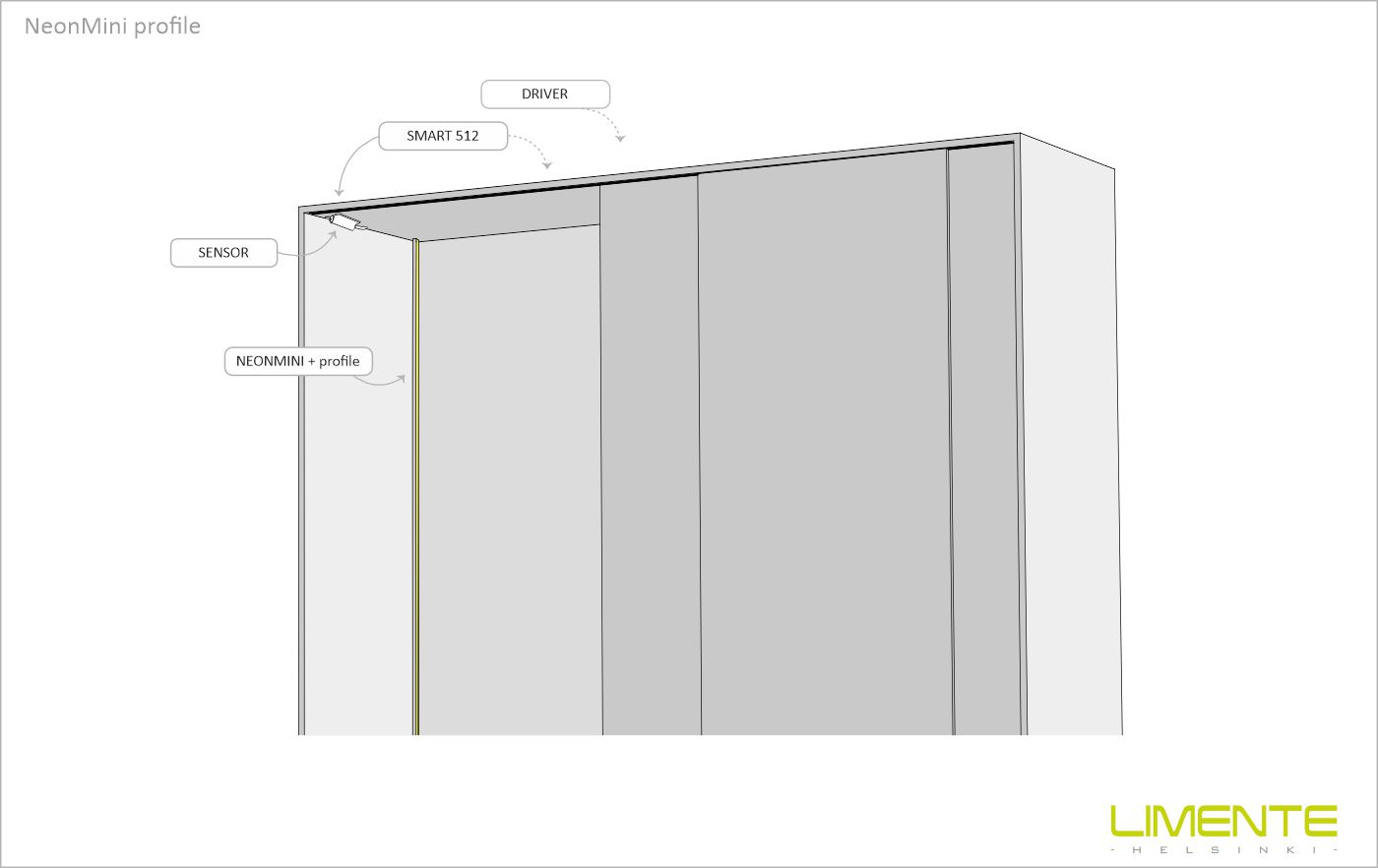

The SMART sensor can be installed either with the included bracket or embedded in a 13mm hole. In flush installation, you should consider the supply cable to be connected behind the sensor, which should be led to the driver. A maximum of 4 sensors can be connected to the electronics unit. All connections are made using easy plug and socket connectors. When connecting lights to the LIMENTE SMART SENSOR, make sure that their total maximum load does not exceed 96 W.
