LIMENTE MINI-2 socket | white / s/s / black

Reference: MINI2
Supplier reference:
LIMENTE MINI-2

69,03 €(55,00 € tax excl)

Ref: Supplier ref: Product variations: Availability Add to brochure:
630584 2407108 MINI-2, double socket, white: In stock MyLimente 630581 2407102 MINI-2, double socket, s/s: In stock MyLimente 630589 2407122 MINI-2, double socket, black: In stock MyLimente

Versatile power sockets

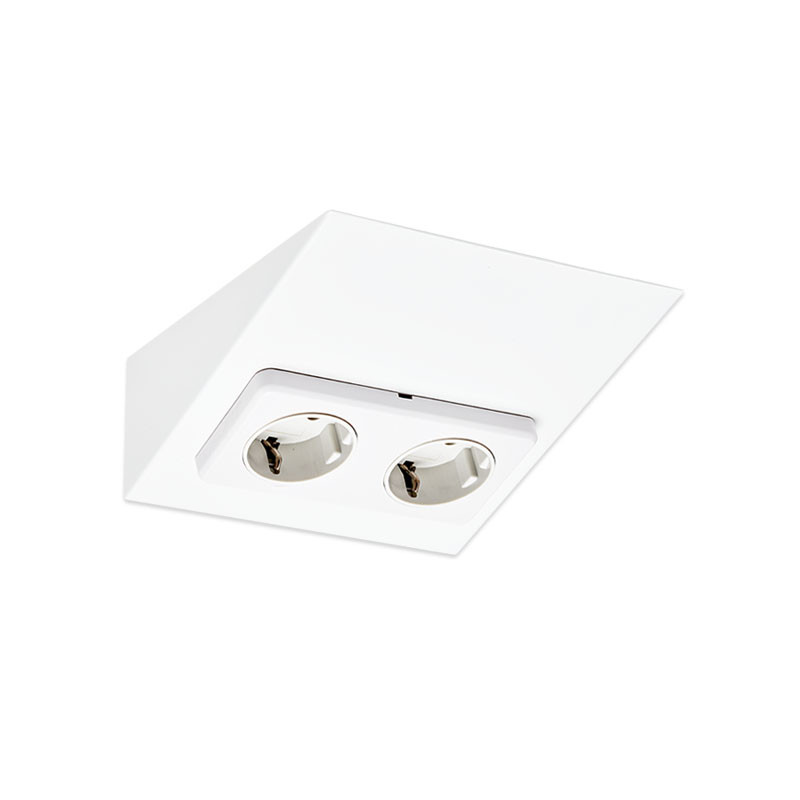

The LIMENTE MINI power sockets are designed as versatile power socket options for kitchen workspaces. Due to their minimalistic design, they go together with any type of light fixtures. They are quick and easy to install. The power sockets have an oblique design, which makes them easy to use. You are always able to clearly see the angle in which plugs are to be connected in the sockets. This way the sockets are always on hand and available! LIMENTE MINI-2 is made of metal in stainless steel, white, or black, and is child proof.


LIMENTE MINI-2 has sockets for two plugs. LIMENTE MINI power sockets are also available as single and triple. Combine MINI power sockets freely to suit your needs!

LIMENTE MINI and LIMENTE MIRO power sockets include connectors for 240V power supply connection. In case electrical connections are done before installing the power sockets (e.g. before installing cabinetry), the connectors can be ordered separately.

Color choices

LIMENTE MINI-2 is available in stainless steel, white, and black.

Installation

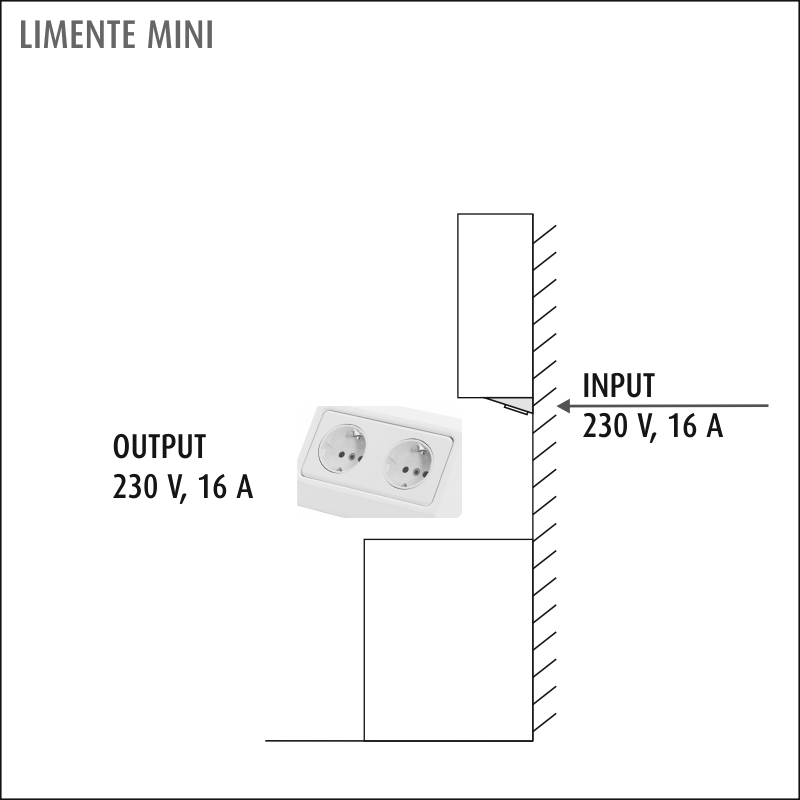

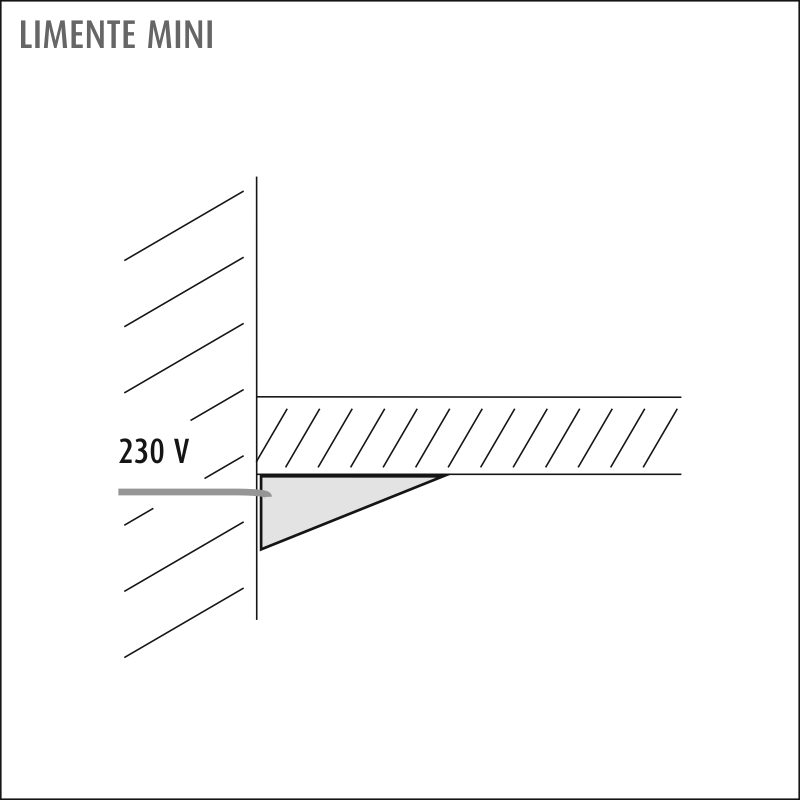

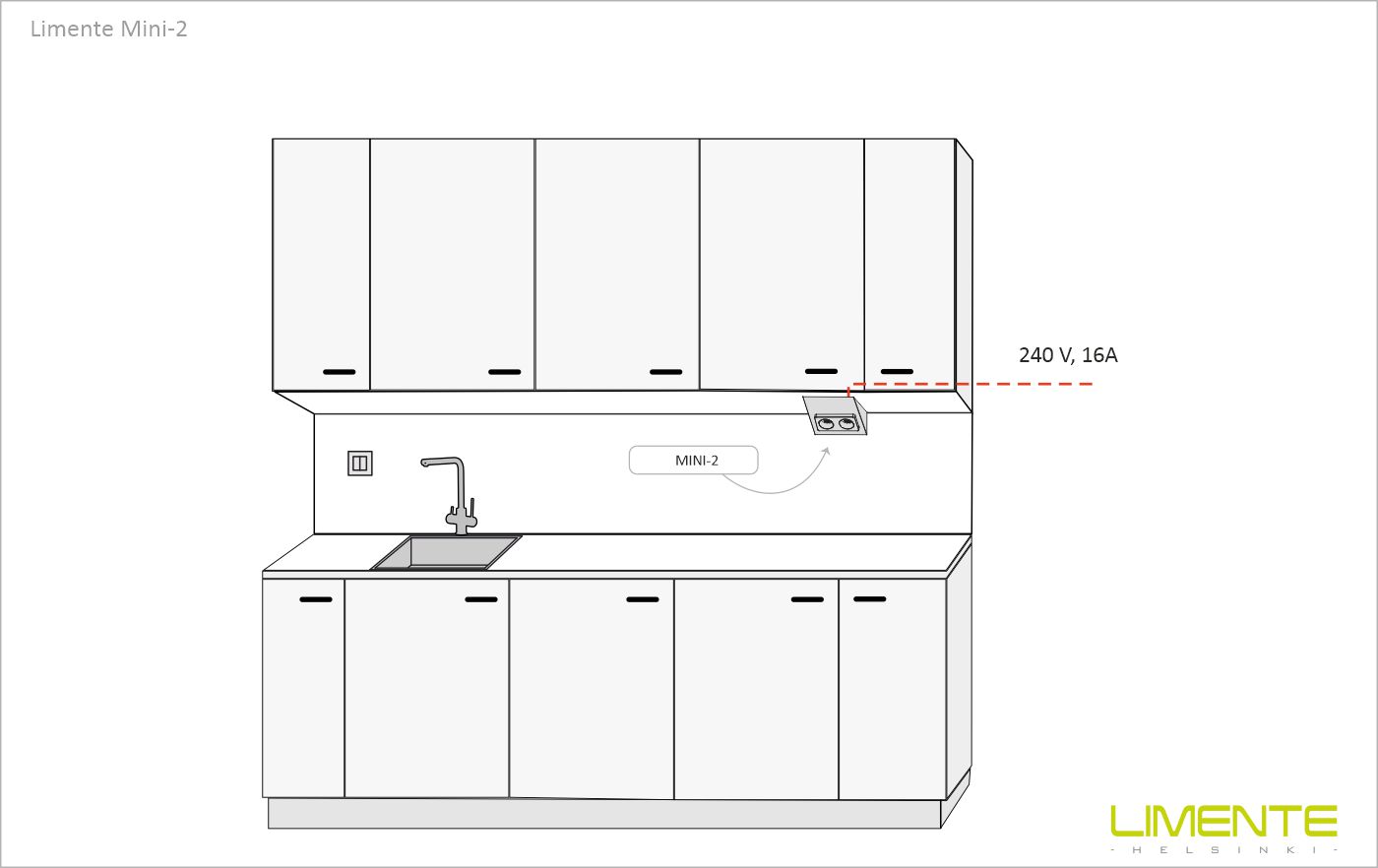

Determine the place, where the power supply will be imported, or use an existing power supply cable. The power socket must be installed in a corner ensuring the back sides of the power socket do not remain open to exposure. The mounting takes place with the supplied screws. Please see further instructions in the installation guide.


The maximum permitted current supply of the LIMENTE MINI socket is 16A. You can chain the supply to another socket directly from the supply connector, but pay attention to the distribution of the current. Connect the power supply cable into the connectors of the power socket. Finally, attach the power socket to a solid surface using the screws supplied. Please see further instructions in the installation guide.

Package contents

- double socket
- mounting screws
- quick connector
- plastic free packaging

Technical data

kg CO2e
13,63
Installation
Fixed installation
Installation
Surface mounting
Current supply
Fixed installation
Efficiency
-
Input power
-
Enclosure class
IP20
Voltage
240 V
Warranty months
24
Max amperage
16 A
