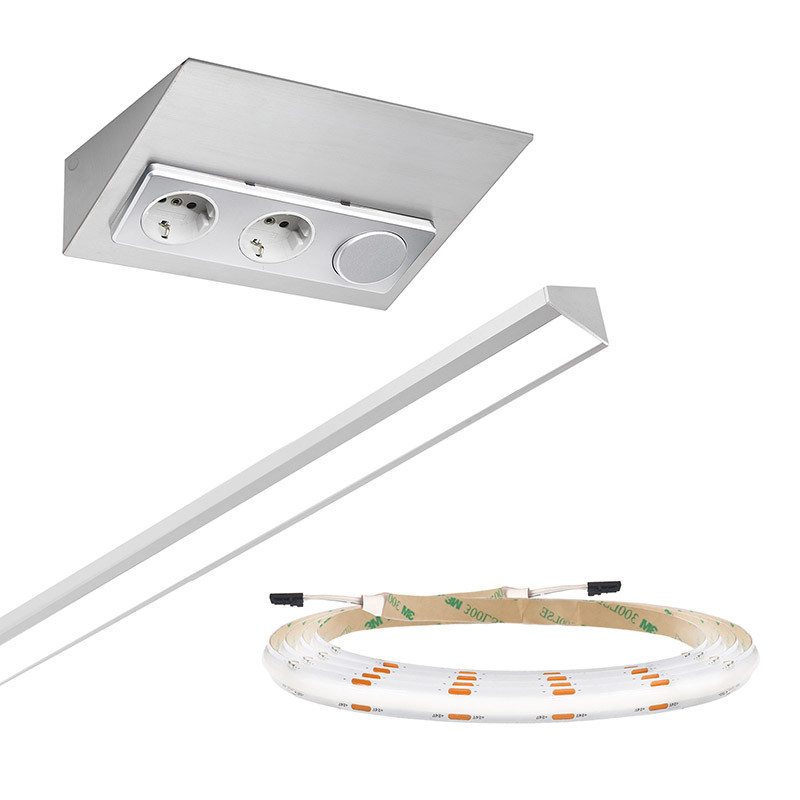

Lightning set Luxor RibDob 3m + Luxa-31 4000 K, 1512 lm/m, CRI>85 | aluminum/black/white with integcrated 24 V led driver and switch

Complete light set for kitchen workspace with completely dot-free LED strip

The LIMENTE under-cabinet lighting set is a versatile, single product code under-cabinet lighting solution. Available in three finishes (white, black, and aluminum). The new DOB technology provides a completely dot-free light, which can be used in a profile even without a diffuser if desired.

The set offers a dual-sided light source that can be shortened to a maximum combined length of 200 cm. This lighting set provides efficient lighting controlled from the socket without the need for a separate lighting control system. The under-cabinet lighting set is available in two colour temperatures: 3000K and 4000K with a light flux of 1300 lm/m, an efficacy of 144 lm/W and the LEDs are very closely spaced (288 LEDs / meter).

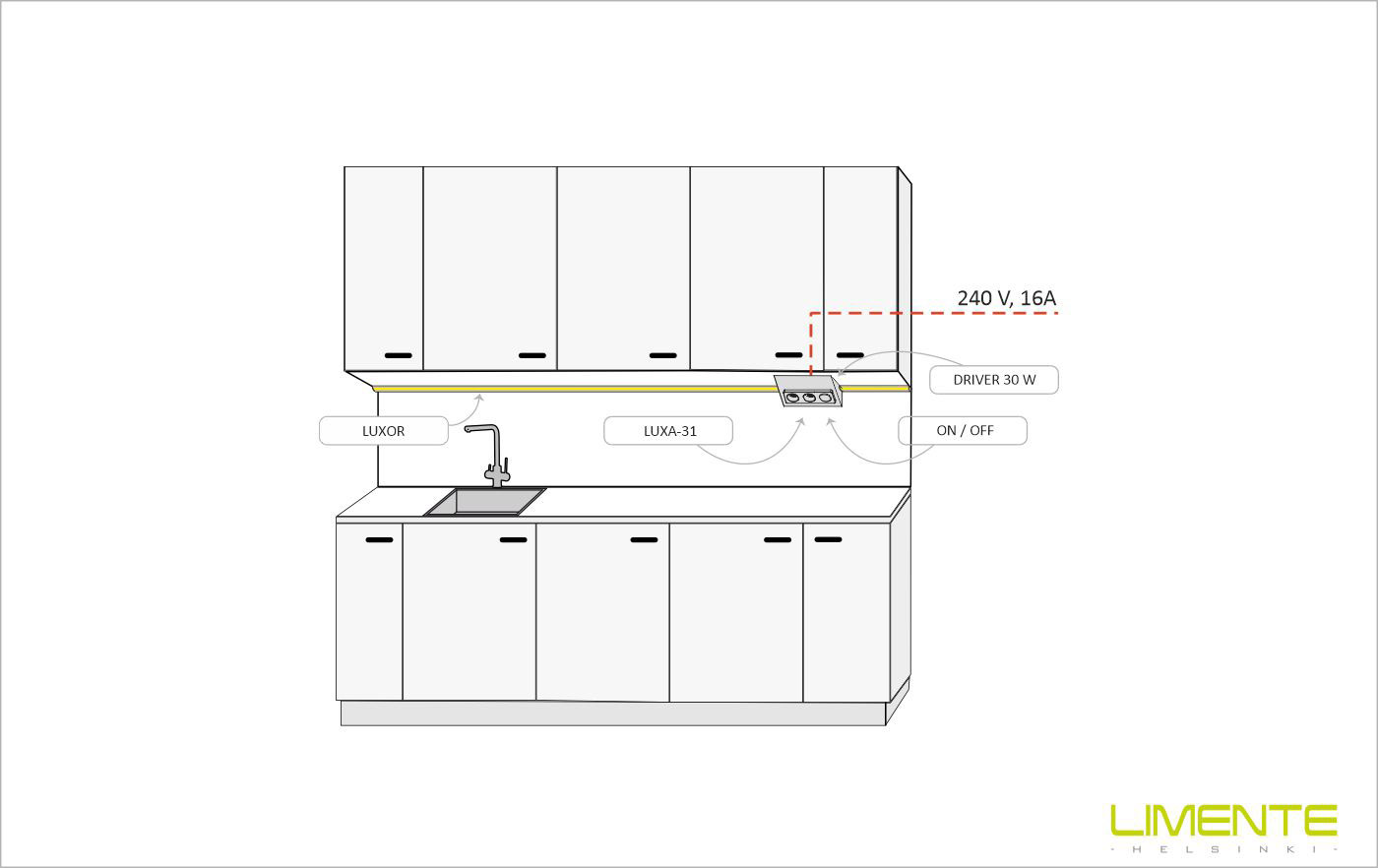

Installation and electrical connection

Installation of the LIMENTE under-cabinet lighting set is quick and easy with the installation accessories included. Specify the location where the power cord will be imported, or use an existing power cord. Specify the location where the power cord will be imported, or use an existing power cord. The power cord is plugged in from the wall. The socket is mounted at an angle against two solid, non-flammable surfaces so that its background does not remain open. The actual fastening is done with the help of the included screws. In one installation, you install both the sockets, the switch and power supply for the LED lights. See the installation instructions for more detailed instructions.

The maximum permitted current supply of the LIMENTE LUXA socket is 16A. You can chain the supply to another socket directly from the supply connector, but pay attention to the distribution of the current. Attach the power supply cable from the wall to the sockets and finally secure the socket against a solid surface using the screws provided.

The power supply cable at both ends of the LED strip allows the luminaire to be used as two separate pieces. The profile can also be used in full length (2 m), in which case the power supply cable at one end is cut off. The LED strip can be shortened every 3 cm to the desired length. A fixed 5 cm + detached 300 cm long cord is standard at both ends. If this is not enough, you can order an extension cable (3 m), product number 681588. Extension cables can be connected for max. 1 pc / luminaire cable, with a maximum cable length of up to 6 meters. Be sure to take into account the adequacy of the length of the luminaire wires and the fact that the maximum load (W) of the power supply is not exceeded.

The cable profile, luminaire profiles and light strip are cut to the desired length and fastened with the included fasteners. The protective film of the tape is removed from the light strip and the strip is pressed into the luminaire profile. Then the power supply cable is connected to the light strip and to the power supply with quick connector.
