Breakfast cabinet SET 2x1m Cabinet sides incl. sensor and socket | 3000 K, 500 lm/m, CRI>80

Versatile breakfast set with door sensor and socket

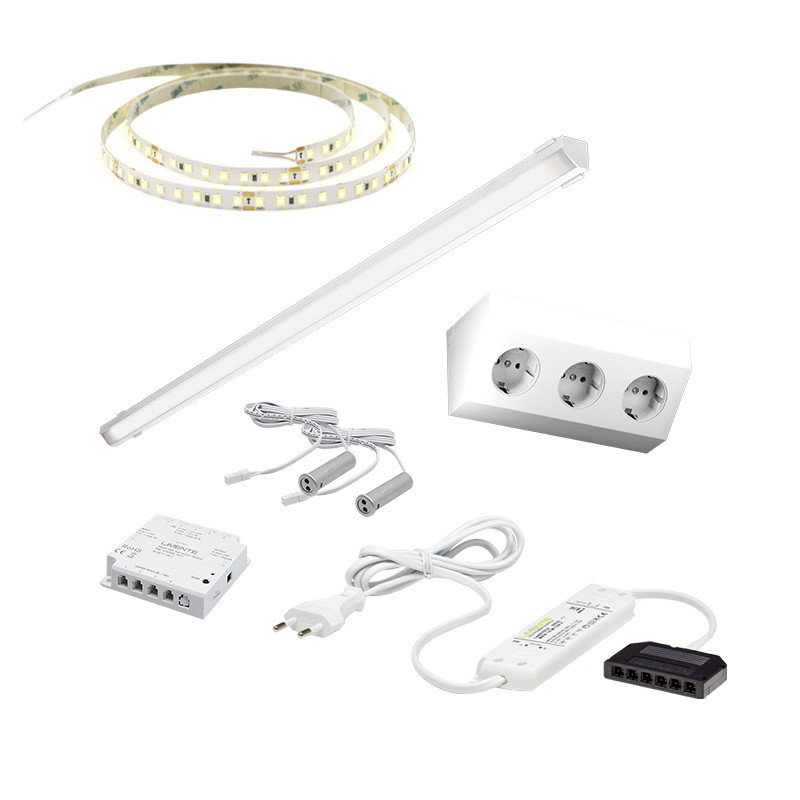

LIMENTE breakfast cabinet set is a versatile solution that includes everything you need to equip your breakfast cabinet. The set is complete, including a vertical or horizontal profile light, driver, and sensor that turns on the lights when you open the cabinet door and the socket.Read more

The breakfast cabinet is optimized with a soft, ambient light that can be left on for mood lighting. The profile, positioned at the front edge, directs a pleasant glow into the cabinet without glare. The sleek, continuous light has no visible seams and provides even illumination across the entire area.
The standard length of LIMENTE breakfast cabinets is 2 meters, and the strip can be shortened to the desired length by about 6 cm, which enables all kinds of individual solutions. The luminaire uses high-quality LEDs with a color rendering index Ra>80, an efficiency of 104 lm/W, a light output of 500 lm/m and a color temperature of about 3000K (there may be slight differences in color temperature from production batch).
The 2 m light profile can be shortened and used in two parts if desired. In addition to the profile, the luminaire has a matte cover (diffuser), which makes the light spotless and at the same time turns the light into a slightly warmer shade. All lighting values are given on the LED strip without cover.
Automated lighting control is at its best when, the lights are on, when they are needed and where they are needed, without the user noticing. Automatic lighting control makes breakfast cabinet lighting a new type of comfort and safety product, and at the same time it is also an ecological way of using lights.
The tilted design allows the socket to be used easily, and you can clearly see in which direction the plug should be inserted into the socket. This corner-mounted socket is child proof.

Lighting

LIMENTE SMART 512 acts as an automatic door ON / OFF switch or when used as a door switch, the switch turns on the lights when the door is opened and turns them off when the door is closed.Read more

The LIMENTE SMART SENSOR electronic unit has a memory that keeps the lights in the setting they were last set to (e.g. off), even if the unit is momentarily without power, e.g. during a power outage.

Easy installation

The installation of the LIMENTE breakfast cabinet set is quick and easy with the included installation accessories and instructions.Read more

The power supply cable (hidden behind the cabinet, for example) is placed in place so that the male connector comes close to the power supply and the female connector close to the profile. The power supply cable at both ends of the LED strip allows the luminaire to be used as two separate pieces. The LED strip can be shortened about every 6 cm to the desired length. Supply connectors and 200 cm long cables are included for both ends. f this is not enough, you can order an extension cable (3 m), product number 681588. Extension cables can be connected for max. 1 pc / luminaire cable, with a maximum cable length of up to 5 meters. Be sure to take into account the adequacy of the length of the luminaire wires and the fact that the maximum load (W) of the power supply is not exceeded.
The cable profile, luminaire profiles and light strip are cut to the desired length and fastened with the included fasteners. The protective film of the tape is removed from the light strip and the strip is pressed into the luminaire profile. Then the power supply cable is connected to the light strip and to the power supply with plug and socket connectors. The cable profile and corner pieces complete the installation so that the wiring is elegantly hidden.
The SMART sensor can be installed either with the included bracket or embedded in a 13mm hole. In flush installation, you should consider the supply cable to be connected behind the sensor, which should be led to the driver. A maximum of 4 sensors can be connected to the electronics unit. All connections are made using easy plug and socket connectors. When connecting lights to the LIMENTE SMART SENSOR, make sure that their total maximum load does not exceed 96 W.
