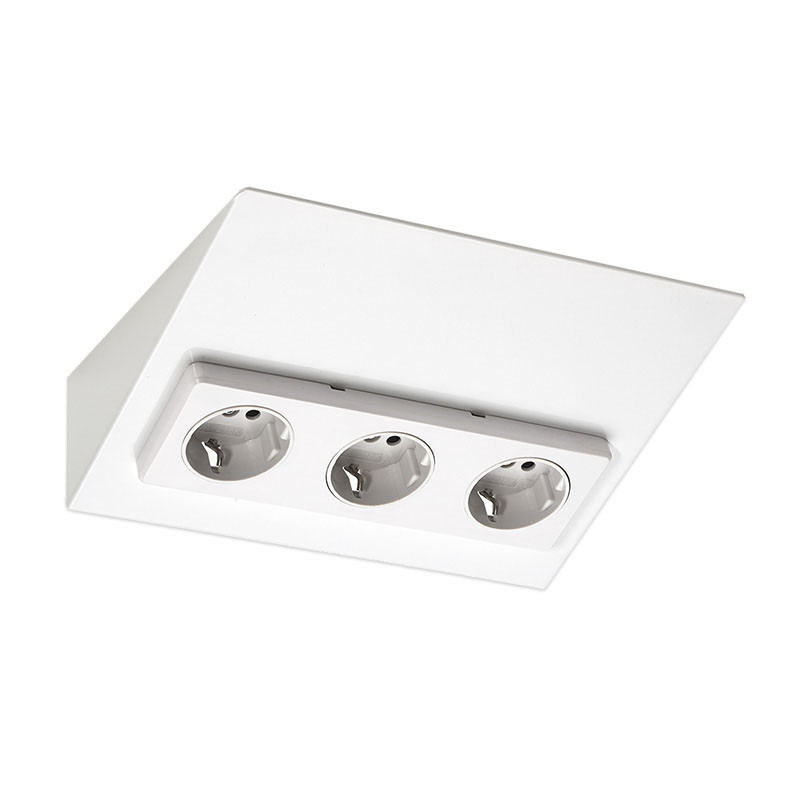

LIMENTE MINI-3 socket | white / s/s / black

Reference: MINI3
Supplier reference:
LIMENTE MINI-3

105,42 €(84,00 € tax excl)

Ref: Supplier ref: Product variations: Availability Add to brochure:
630684 2407109 MINI-3, triple socket, white: In stock MyLimente 630681 2407103 MINI-3, triple socket, s/s: In stock MyLimente 630689 2407123 MINI-3, triple socket, black: In stock MyLimente

Versatile power sockets

The LIMENTE MINI series sockets are designed in Finland as a versatile power outlets over the kitchen counter, under the upper cabinets. Minimalistic design makes them easy to be used with all types of kitchen work lights. They are also quick and easy to install. The tilted design makes it easy to use the plugs and you can see clearly in which direction the plug should be placed in the socket. Mini series sockets are child proof.


The MINI-3 socket has a slot for three plugs. Mini sockets are also available in versions that have either one or two plug places and these can be combined in the kitchen as needed. In addition to the basic model, the Mini-2 is available with an integrated light switch (LIMENTE LUNA) and two USB plug places (LIMENTE MINI-2c USB).

The LIMENTE MINI, the LIMENTE LUNA and the LIMENTE ECON sockets include a 240V power supply socket. If you want to make the electrical installation in advance (for example, before installing the furniture), you can order the connection set separately.

Socket color options

The Mini-3 is available in white, stainless steel and black. Stainless steel is brushed and both white and black have a matte finish (matte black and matte white). All color options have a sturdy metal body.

Installation and electrical connection

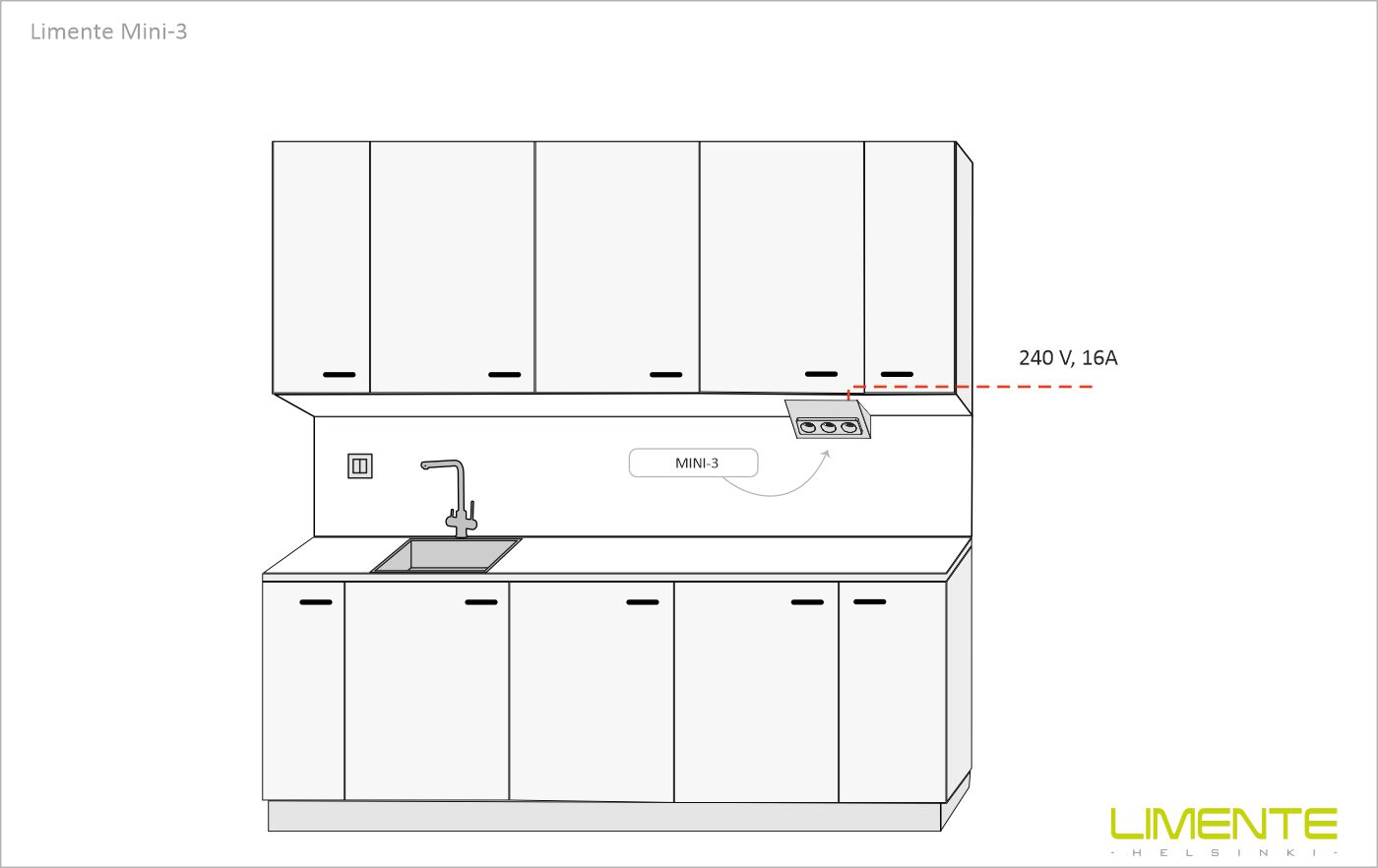

Define the place where the power supply is to be imported or use an existing power supply cable. The socket must be installed against an angle of two fixed surfaces so that its background is not left open. The actual mounting is made using the supplied screws. See the installation instructions for more details.


The maximum permitted current supply of the LIMENTE MINI socket is 16A. You can chain the supply to another socket directly from the supply connector, but pay attention to the distribution of the current. Attach the connector supplied with the socket from the wall to the power supply cable. Connect the receptacle in the socket on the power supply cable connector and secure the connection with the locking piece. Finally, attach the socket with the supplied screws to the fixed surface. See the installation instructions for more details.

Package contents

- triple socket
- mounting screws
- quick connector
- plastic free packaging

Technical data

kg CO2e
13,63
Installation
Fixed installation
Installation
Surface mounting
Current supply
Fixed installation
Efficiency
-
Input power
-
Enclosure class
IP20
Voltage
240 V
Warranty months
24
Max amperage
16 A
