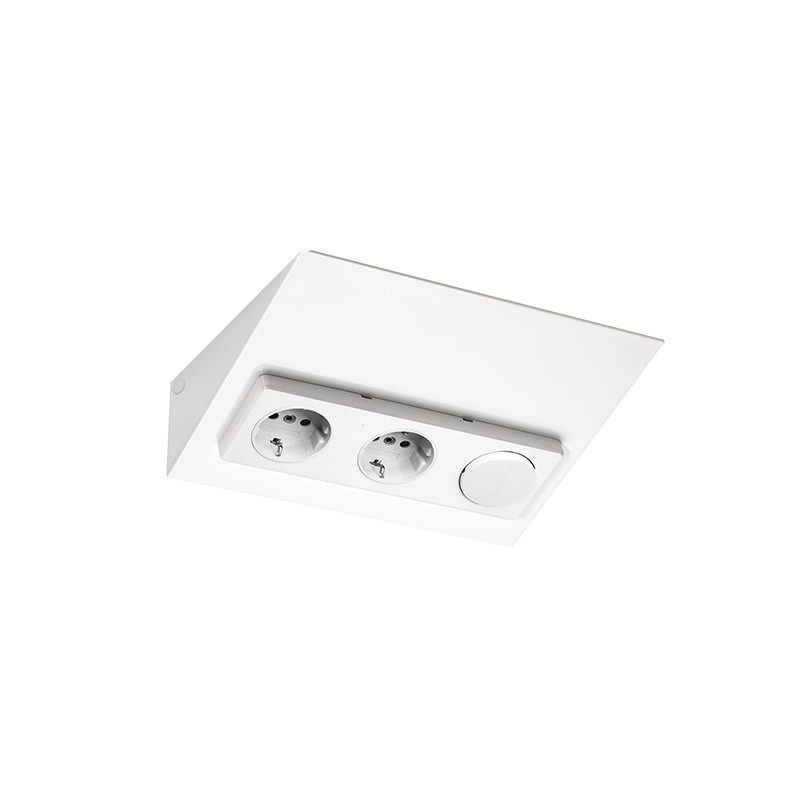

LIMENTE LUXA-31 (3-in-1) socket, white | with integCRIted 24 V led driver and switch

Reference: LUXA31VA
Supplier reference:
LIMENTE LUXA-31 S/S socket with switch

140,12 €(113,00 € tax excl)

Ref: Supplier ref: Product variations: Availability Add to brochure:
631224 2407134 LUXA-31 white: In stock MyLimente 68828 4139834 LED-LUXOR 20, 2m, white, 4000K: In stock MyLimente 68834 4139840 LED-LUXOR 20 LUX, 2m, white, 3000K: In stock MyLimente 68840 4139846 LED-LUXOR 20 LUX, 2m, white, 4000K: In stock MyLimente 682336 4129707 LED-CORNER 20, 2m, white, 4000K: In stock MyLimente 682340 4129711 LED-CORNER 20 LUX, 2m, white, 3000K: In stock MyLimente 682342 4129713 LED-CORNER 20 LUX, 2m, white, 4000K: In stock MyLimente 68980 4129780 LED-DECKER 20, 2m, 4000K: In stock MyLimente 68982 4129782 LED-DECKER 20 LUX, 2m, 3000K: In stock MyLimente 68983 4129783 LED-DECKER 20 LUX, 2m, 4000K: In stock MyLimente

Dual socket with integrated 24 V LED power supply and switch (2-in-1)

The LIMENTE LUXA-31 is a corner socket that includes a power supply for LED lights and an on/off switch to control the kitchen work space lights. It is quick and easy to install and can be used with all types of LIMENTE LED lights. The tilted design makes the sockets easy to access and you can clearly see in which direction the plug should be inserted. The material is either stainless steel, painted white or black (metal body). The sockets are child proof and designed in Finland.

LUXA sockets have two plug places, 30w power supply and an on/off switch for led-lights. The switch allows you to control for example kitchen work lights. By combining LIMENTE LUXA with LIMENTE profile lights, you will create a stylish combination for your kitchen. The design of the LIMENTE LUXA is similar to LIMENTE MINI sockets, so you can elegantly combine these models in the same kitchen.

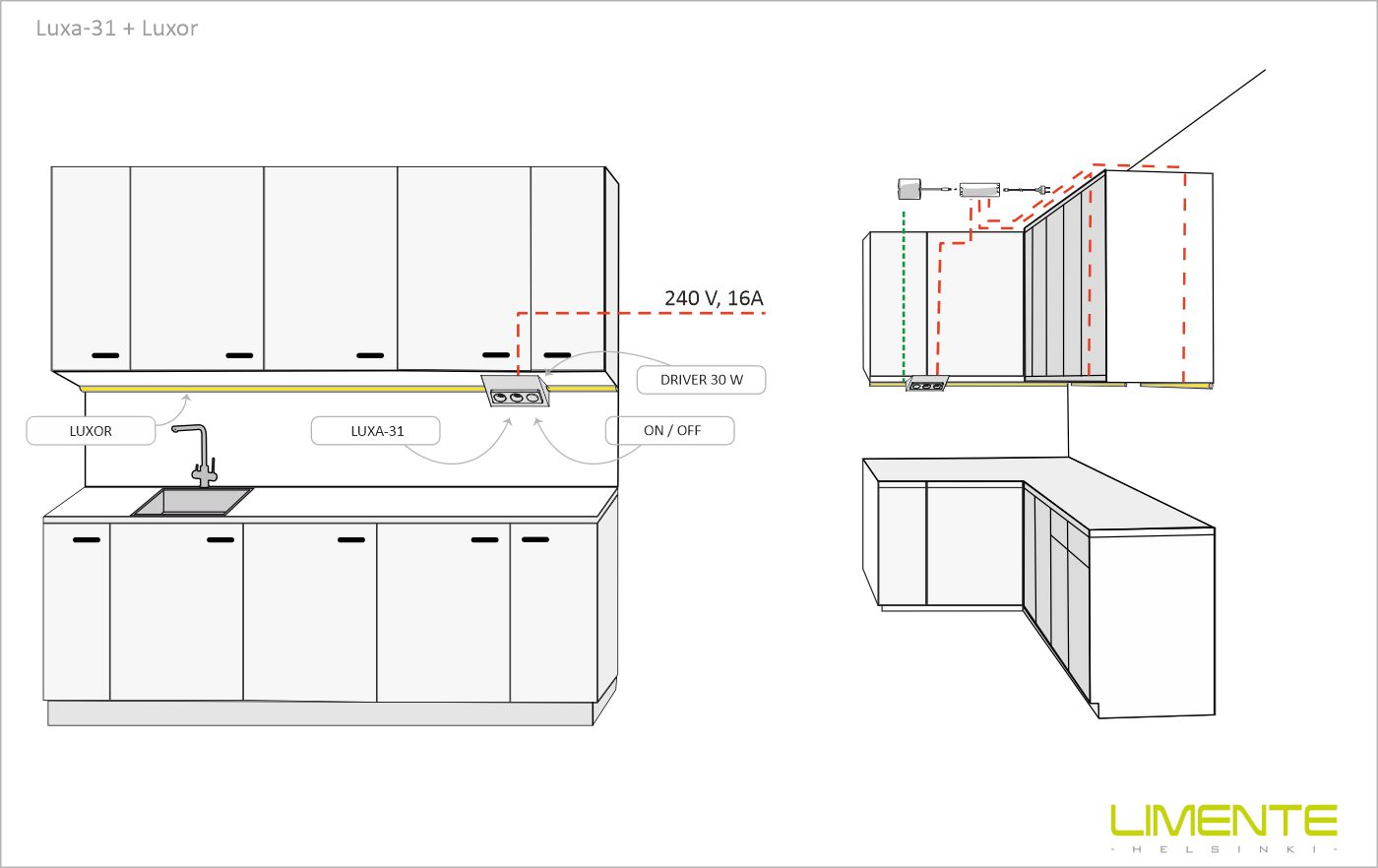

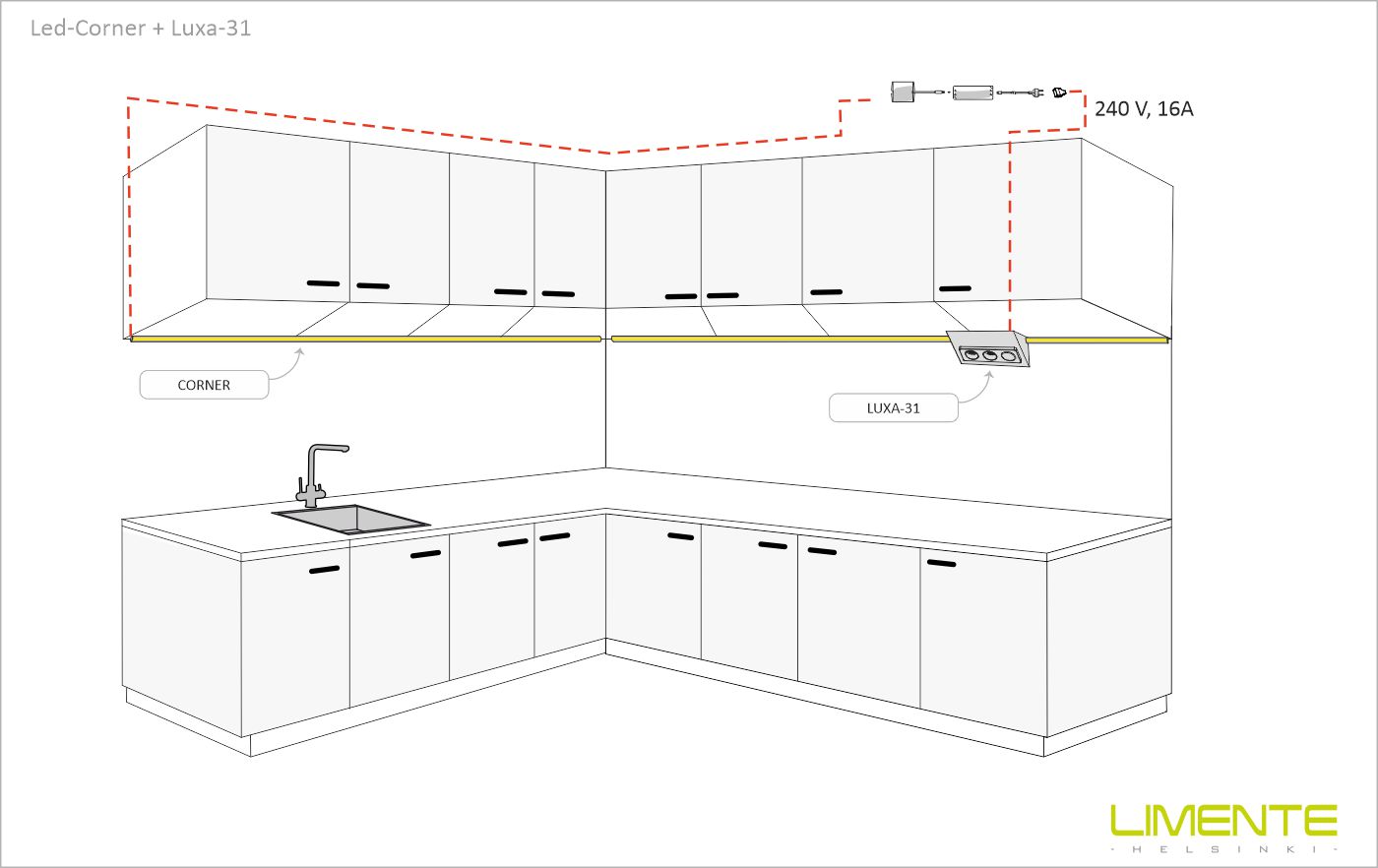

With the LIMENTE LUXA you can easily replace the traditional fluorescent lamp + socket combination with the modern LED lighting without any major electrical installations. LIMENTE LUXA is installed in place of the fluorescent lamp and the LUXA socket replaces the socket and light switch. In addition, you need any 24 V LIMENTE lights that you connect to the 24V power supply that is inted in the LUXA socket. These lights are controlled by the switch on the socket.

Socket color options

The Luxa socket is available in white, stainless steel and black. Stainless steel is brushed and both white and black have a matte finish (matte black and matte white). All color options have a sturdy metal body.

Installation and electrical connection

Specify the location where the power cord will be imported, or use an existing power cord. The power cord is plugged in from the wall. The socket is mounted at an angle against two solid, non-flammable surfaces so that its background does not remain open. The actual fastening is done with the help of the included screws. In one installation, you install both the sockets, the switch and power supply for the LED lights. See the installation instructions for more detailed instructions.

The maximum permitted current supply of the LIMENTE LUXA socket is 16A. You can chain the supply to another socket directly from the supply connector, but pay attention to the distribution of the current. Attach the power supply cable from the wall to the sockets and finally secure the socket against a solid surface using the screws provided.

Package contents

Technical data

Power socket color
Surface mounting
Current supply
Fixed installation
Secondary connector
2 x Top, musta
Enclosure class
240 V
Warranty months
