LIMENTE INSER CCT LUX 2700 - 6000 K, IP44, aluminium | 1500 lm/m, CRI>90

Reference: INSERCCT
Supplier reference:
INSER CCT LUX aluminium

142,60 €(115,00 € tax excl)

Ref: Supplier ref: Product variations: Availability Add to brochure:
682372 4129744 INSER 2m, CCT LUX: In stock MyLimente 682373 4129745 INSER 4m, CCT LUX: In stock MyLimente 640560 4009749 SMART 560 CCT-receiver: In stock MyLimente 640561 2600867 SMART 561 CCT-dimmer, white glass: In stock MyLimente 640562 2600868 SMART 562 CCT-dimmer, white: In stock MyLimente LED28030 4009738 Driver 30 W: In stock MyLimente LED28060 4009740 Driver 60 W: In stock MyLimente LED28100 4009741 Driver 100 W: In stock MyLimente 66110 4009734 Extension cable 3,0 M, CCT: In stock MyLimente

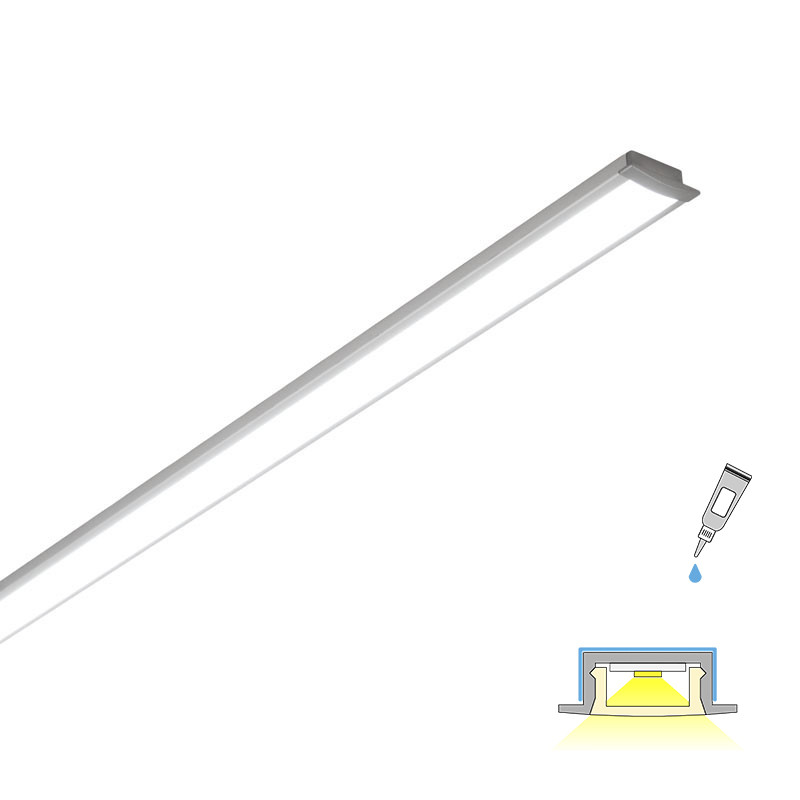

An unnoticeable recessed LED profile fixture

INSER is a versatile light to be used both as a working light and a mood light, e.g. in a kitchen workspace or on shelves and other surfaces where light is needed! It is an aluminum profile fixture designed to be recessed in furniture. The profile is submerged to furniture level and only a sleek thin edge of the profile is visible. INSER IP44 CCT is only 8.5 mm deep allowing installation on a sheeted wall without a need to change the wall support structures. The fixture can be shortened to a desired length.


LIMENTE INSER IP44 CCT is available in standard lengths of 2 and 4 meters. The fixture can be shortened to a desired length at 3,3 cm intervals. LIMENTE INSER IP44 CCT comes with quality LEDs with a color rendering index of Ra> 90, an efficiency of 105 lm/W, a luminosity of 683 - 1505 lm/m and a color temperature of about 2700-6000K. The fixture includes a matte protective glass diffuser, which makes the light even and continuous and makes the light a bit warmer in color temperature. All technical values are given to the led strip without a diffuser.

In addition to LIMENTE INSER IP44 CCT, LIMENTE INSER is available in two different versions: the standard version LIMENTE INSER IP44 B (IP44, Ra>85, 4000K) and the LUX version LIMENTE INSER IP44 LUX (IP44, Ra>90, 3000K and 4000K).

To use LIMENTE INSER, you’ll need a suitable 24V power supply. Compatible products are mentioned alongside the product. The profile, the led strip and the power supply are also sold separately. N.B.! The power supply must be ordered separately.

Dimming and lightcontrol

Appropriate lighting for any occasion is made easy with our dimming and lighting control system. You can easily change the lighting and ambience in your home from efficient and bright to dim and cozy by dimming your LIMENTE GRADE CCT with our wireless system. You can use the same switch to adjust all the LIMENTE CCT lights in the room. The light and color temperature adjust smoothly at the same time while creating ambience for working, entertaining or any mood in between.


LIMENTE GRADE CCT requires the dimmer LIMENTE SMART 560 (no. 640560) and the wireless wall switch (no. 640561 and 640562) from our LIMENTE SMART series to use.

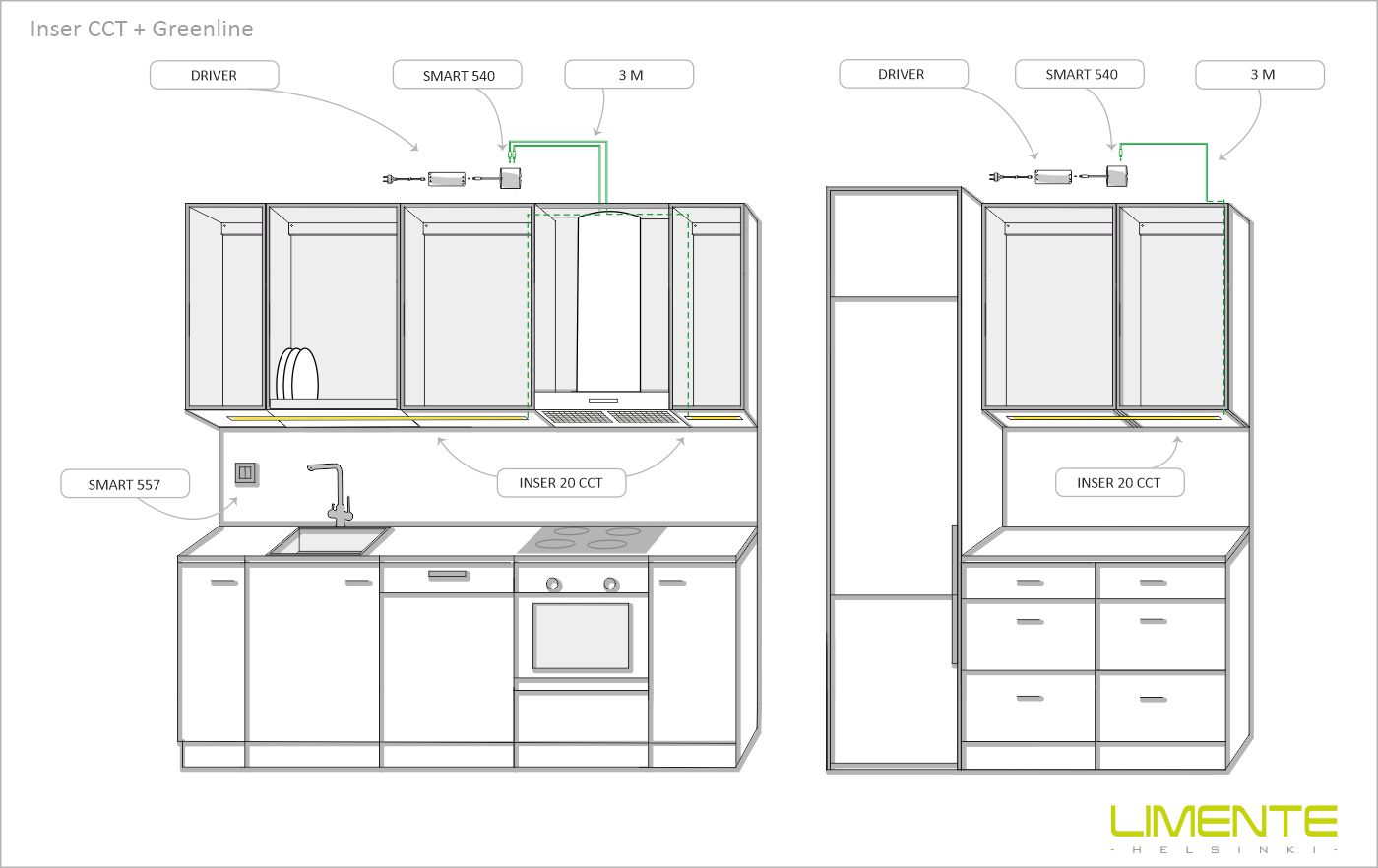

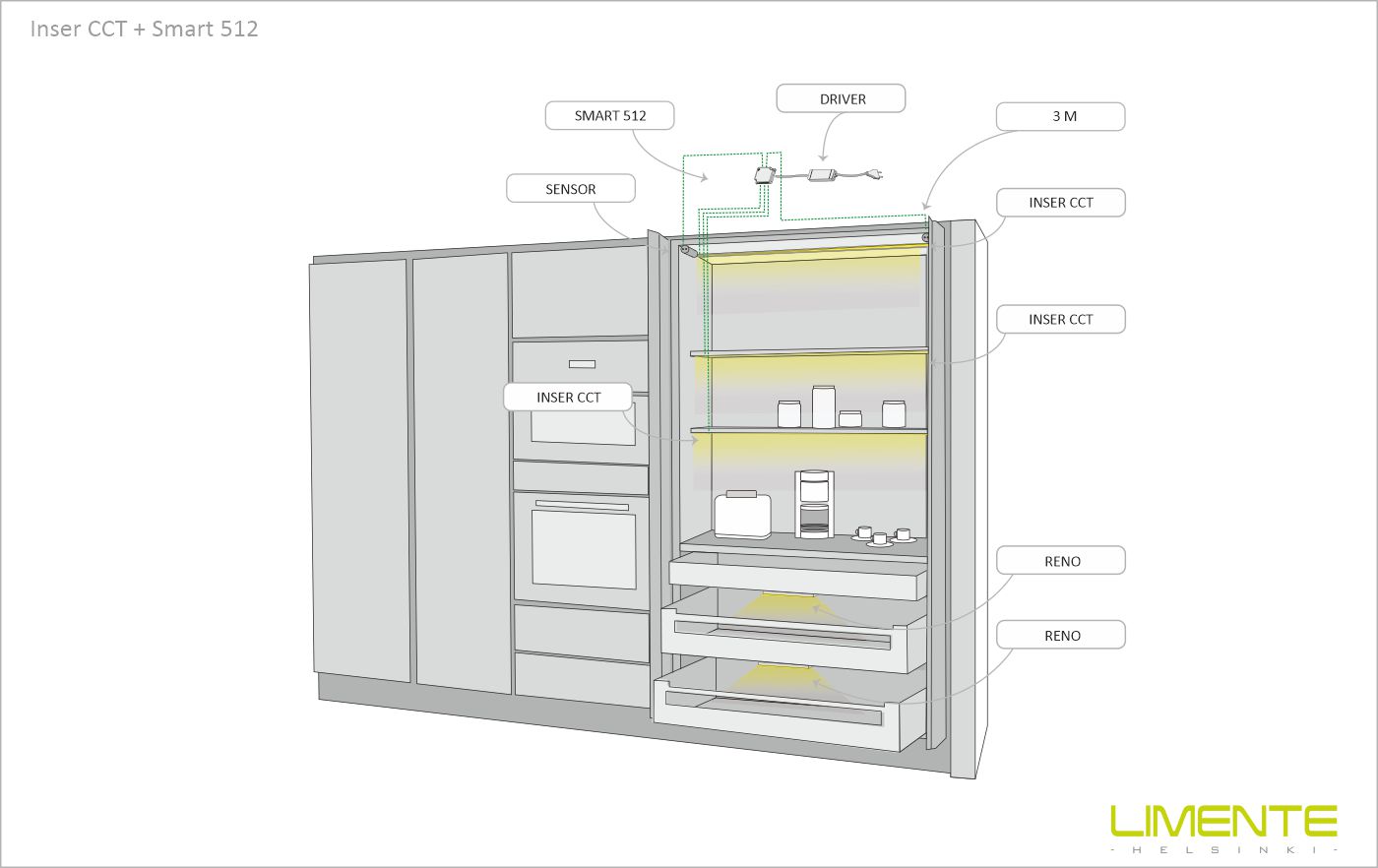

The dimmer is installed between the power supply and the fixture. The dimmer includes a similar manifold to the one included in the power supply. You can connect up to 6 LIMENTE lights to one dimmer, as long as the maximum load (W) of the power supply is not exceeded.

Installation

LIMENTE GRADE CCT is fast and easy to install with the installation tools included.


The power supply cable is put in place (e.g. hidden behind a cabinet) so that the male connector comes close to the power supply and the female connector comes near the GRADE profile. A power supply cable at both ends of the fixture enables GRADE CCT to be used as two separate lights. The fixture can be shortened to a desired length at 6,6 cm intervals. There is a 5cm + 300cm long power cord at each end of the fixture. An extension cord (3m, no. 66110) can be ordered, in case a longer power cord is needed. Extension cords can be fitted with a maximum on 1 pcs of fixtures, with a maximum cord length of up to 6m. Please note the adequate length of the cord and the maximum load (W) of the power supply.

GRADE CCT can also be used in its full length (2 or 4 m). When wanting to use the whole length, simply cut off the power supply cable at the other end.

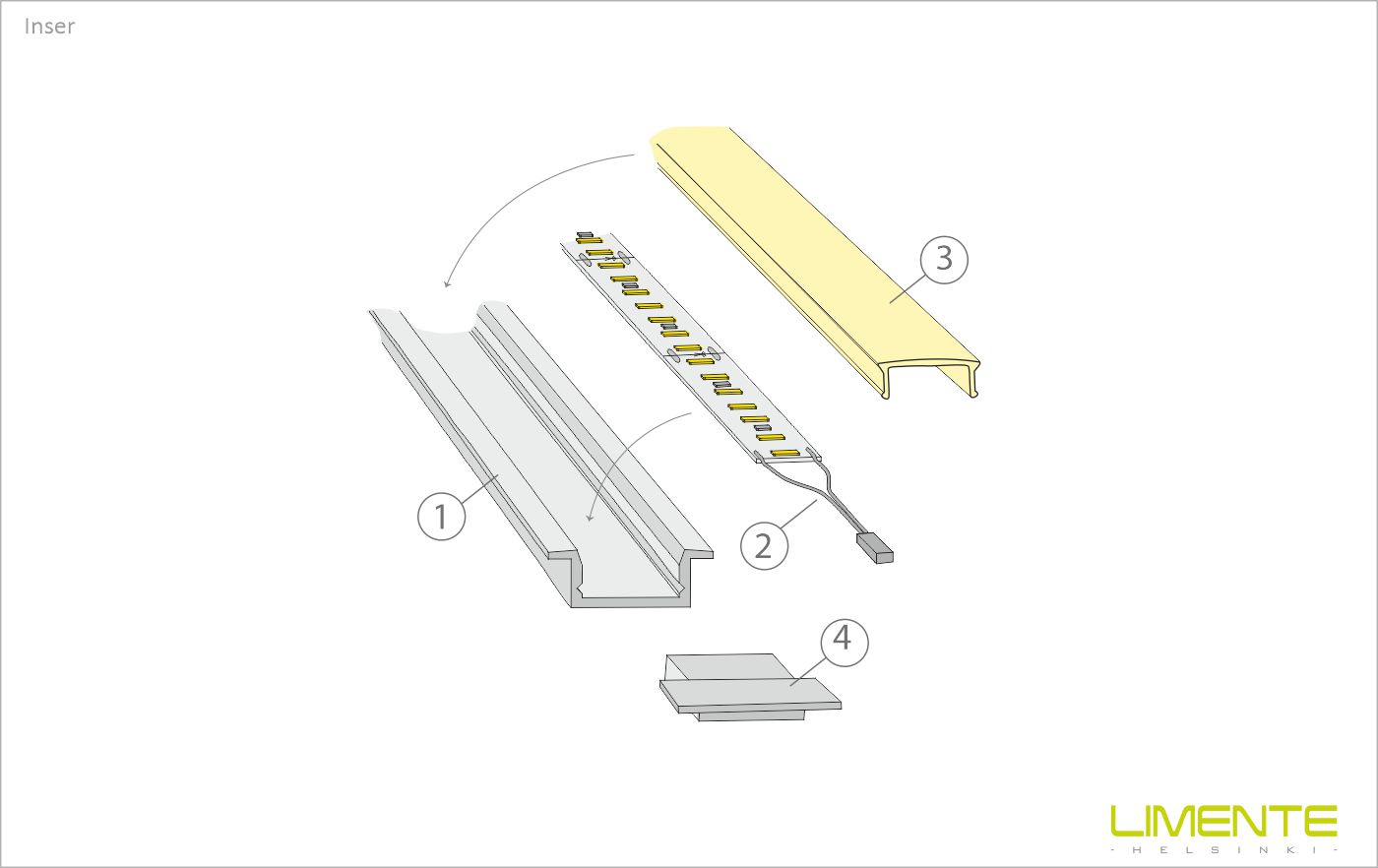

When installing, cut the profile into the desired length and attach in place with the installation tools and clips included. Remove the double-sided tape from the light strip and press onto the profile. Finally, connect the power supply cable to the light strip and to the power supply. All electrical connections are done with quick connectors.

Package contents

Choose product from drop-down menu above and you can see it’s content here.

Technical data

Fixture color
Alulook
Light source
LED
Installation
Flush mounting
Current supply
CCT, hole diameter 12 mm
Light flux
1500 lm/m
Efficiency
105 lm/W
Color temperature
2700 - 6000 K
CRI value
> 90
Lifetime
54.000h (L80B10)
Enclosure class
IP44
Voltage
24 V DC
