LIMENTE SEAM CCT LUX 2700 - 6000 K, IP44, aluminium | IP44, 2x1500 lm/m, CRI>90

An unnoticeable mood light fixture for shelves with color temperature adjustment

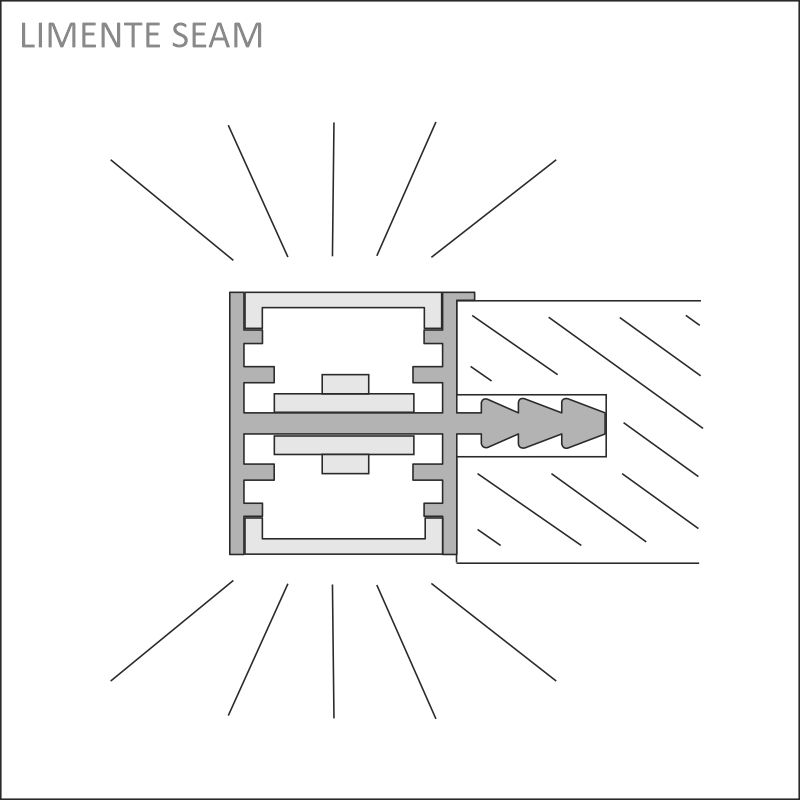

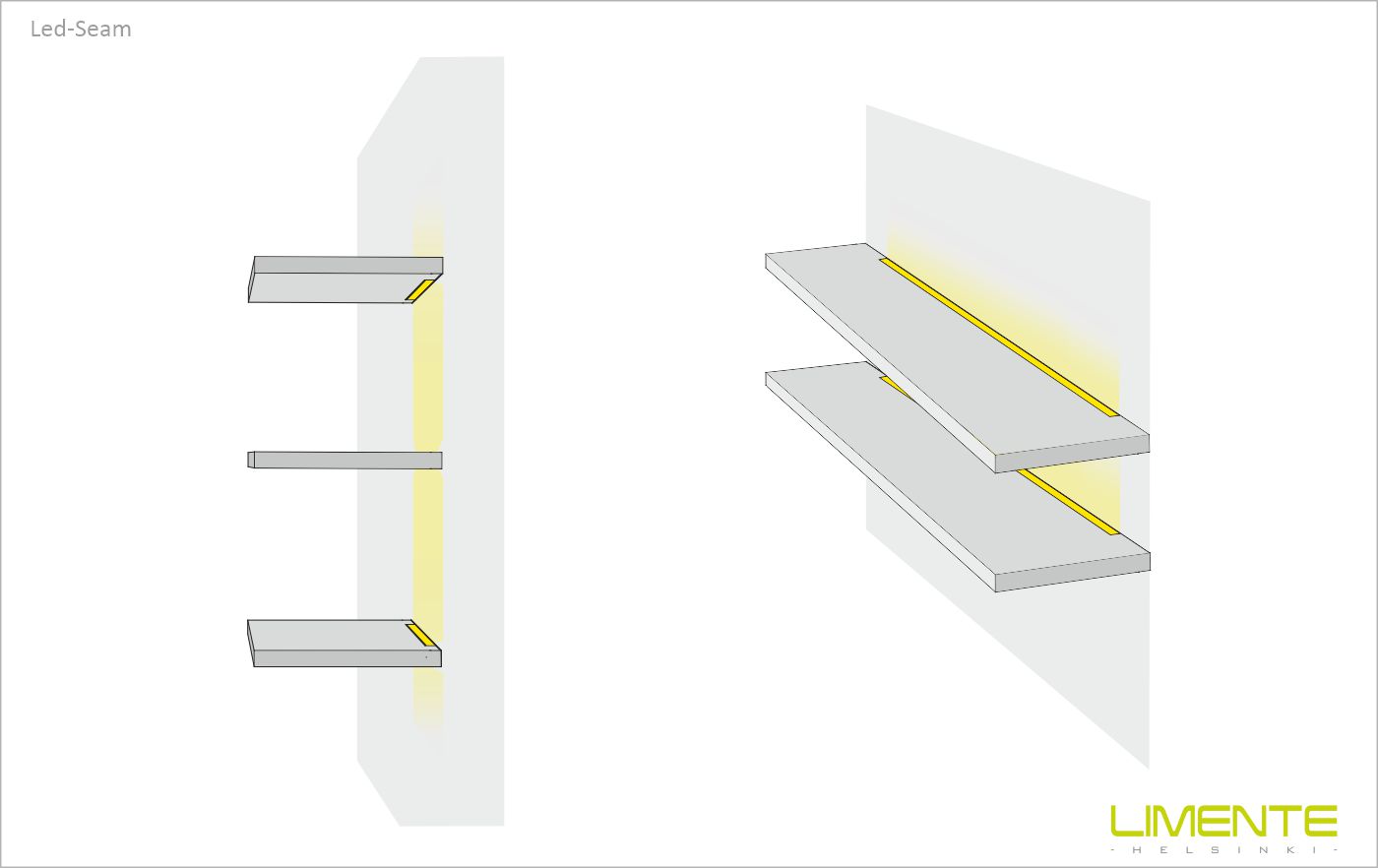

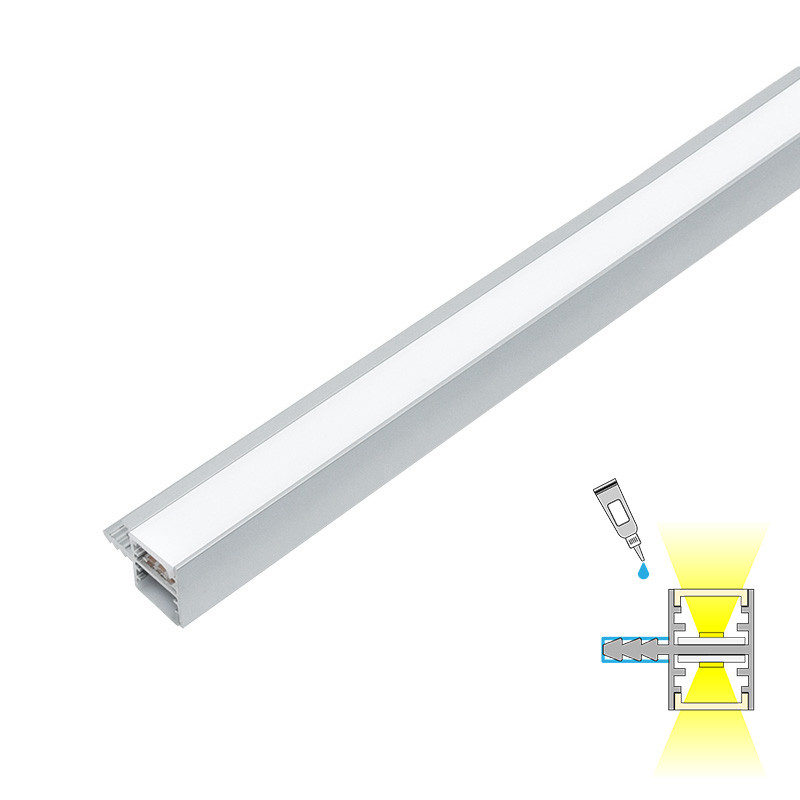

LIMENTE SEAM IP44 B is a minimalistic and unnoticeable light profile fixture that projects light up and down. The fixture can be used in showcases or shelves on a wall. The only limit is your imagination! When installed near the back end of a shelf, the fixture is extremely inconspicuous still providing excellent mood lighting, whereas when placed near the front end of a shelf, the fixture provides more working light. Whichever your choice, the light is always stylish and continuous with no connection points interrupting the light, which provides even light throughout the area.

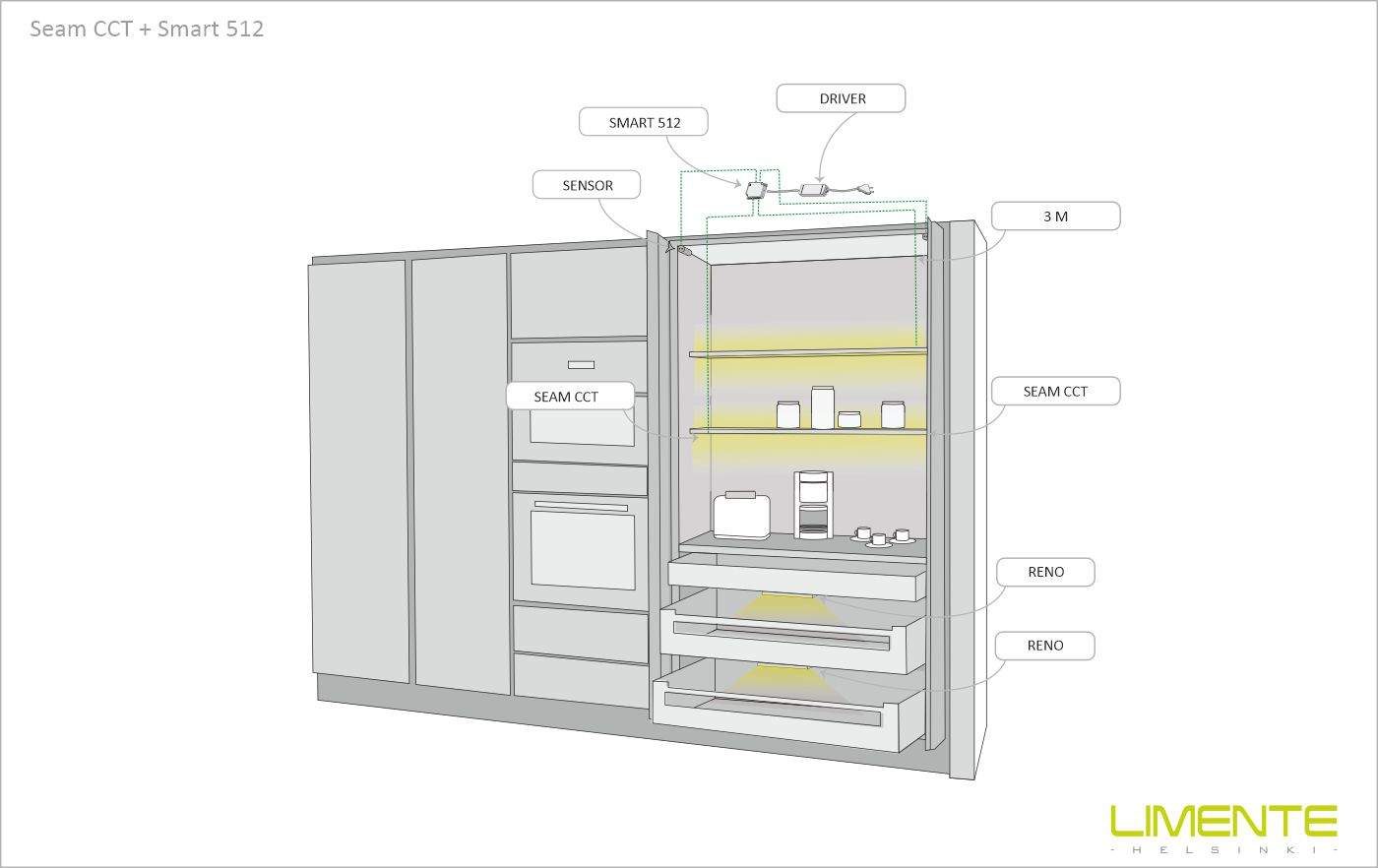

See ”Installation pictures” for tips on how to use SEAM IP44 B as indirect lighting when placed behind shelves in the kitchen or in the living room, or even inside a wardrobe to light the closet! LIMENTE SEAM profiles are available in multiple lengths (2-6m) and three different color temperatures (3000K, 4000K and 2700K-6000K). The profile itself has a standard length of 2m and can be shortened to a desired length.
LIMENTE SEAM IP44 CCT is available in standard lengths of 2 and 4 meters. The fixture can be shortened to a desired length at 6,6 cm intervals. LIMENTE SEAM IP44 CCT comes with quality LEDs with a color rendering index of Ra> 90, an efficiency of 105 lm/W, a luminosity of 683 - 1505 lm/m and a color temperature of about 2700-6000K. The fixture includes a matte protective glass diffuser, which makes the light even and continuous and makes the light a bit warmer in color temperature. All technical values are given to the led strip without a diffuser.
In addition to LIMENTE SEAM IP44 CCT, LIMENTE SEAM is available in two different versions: the standard version LIMENTE SEAM IP44 B (IP44, Ra>85, 4000K) and the LUX version LIMENTE SEAM IP44 LUX (IP44, Ra>90, 3000K and 4000K).
To use LIMENTE SEAM, you’ll need a suitable 24V power supply. Compatible products are mentioned alongside the product. The profile, the led strip and the power supply are also sold separately. N.B.! The power supply must be ordered separately.

Dimming and lightcontrol

Appropriate lighting for any occasion is made easy with our dimming and lighting control system. You can easily change the lighting and ambience in your home from efficient and bright to dim and cozy by dimming your LIMENTE SEAM IP44 CCT with our wireless system. You can use the same switch to adjust all the LIMENTE CCT lights in the room. The light and color temperature adjust smoothly at the same time while creating ambience for working, entertaining or any mood in between.

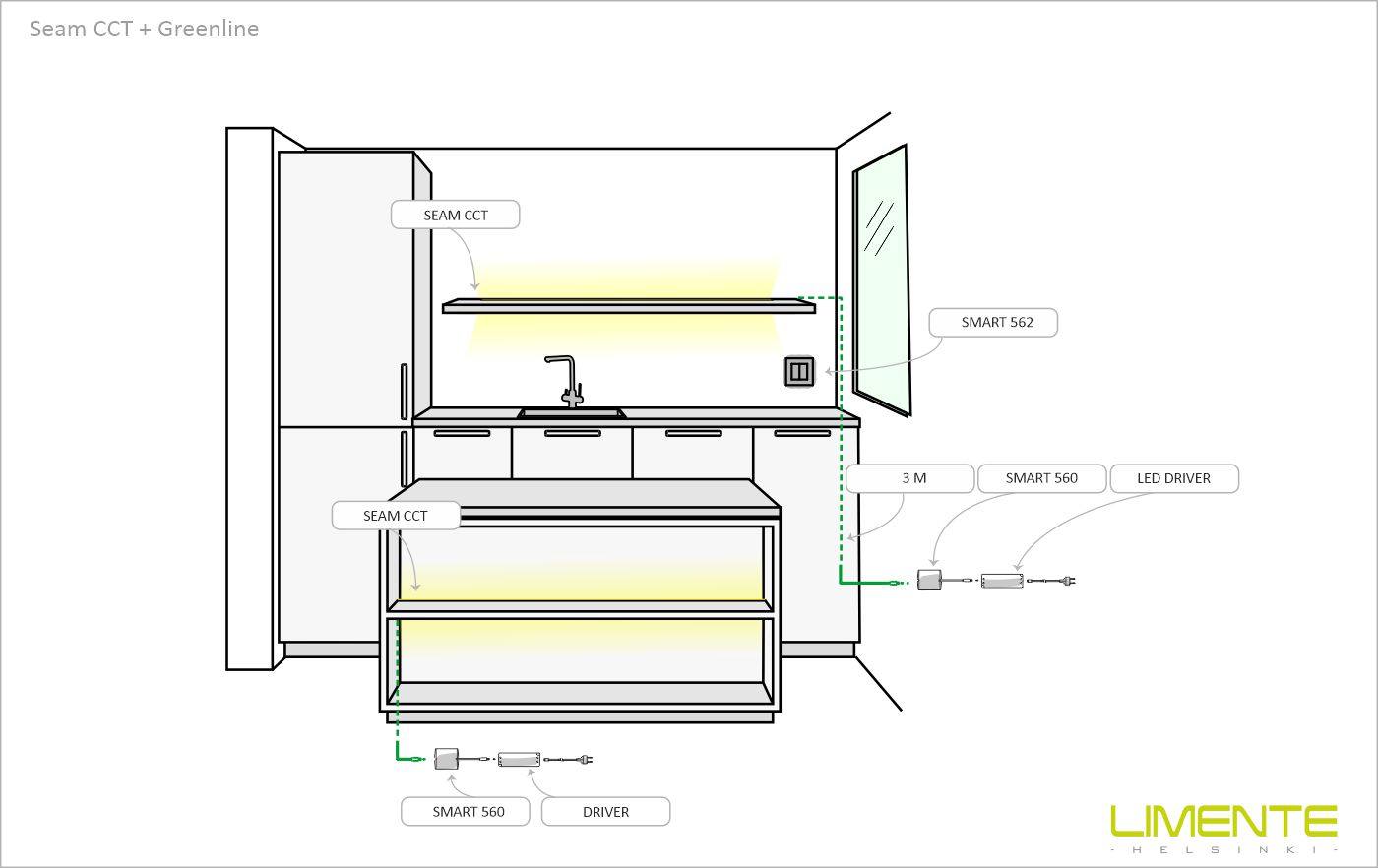

LIMENTE SEAM IP44 CCT requires the dimmer LIMENTE SMART 560 (no. 640560) and the wireless wall switch (no. 640561 and 640562) from our LIMENTE SMART series to use.
The dimmer is installed between the power supply and the fixture. The dimmer includes a similar manifold to the one included in the power supply. You can connect up to 6 LIMENTE lights to one dimmer, as long as the maximum load (W) of the power supply is not exceeded.

Installation

LIMENTE SEAM IP44 CCT is fast and easy to install with the installation tools included.

The power supply cable is put in place (e.g. hidden behind a cabinet) so that the male connector comes close to the power supply and the female connector comes near the SEAM profile. A power supply cable at both ends of the fixture enables SEAM IP44 CCT to be used as two separate lights. The fixture can be shortened to a desired length at 6,6 cm intervals. There is a 5cm + 300cm long power cord at each end of the fixture. An extension cord (3m, no. 66110) can be ordered, in case a longer power cord is needed. Extension cords can be fitted with a maximum on 1 pcs of fixtures, with a maximum cord length of up to 6m. Please note the adequate length of the cord and the maximum load (W) of the power supply.
SEAM IP44 CCT can also be used in its full length (2 or 4 m). When wanting to use the whole length, simply cut off the power supply cable at the other end.

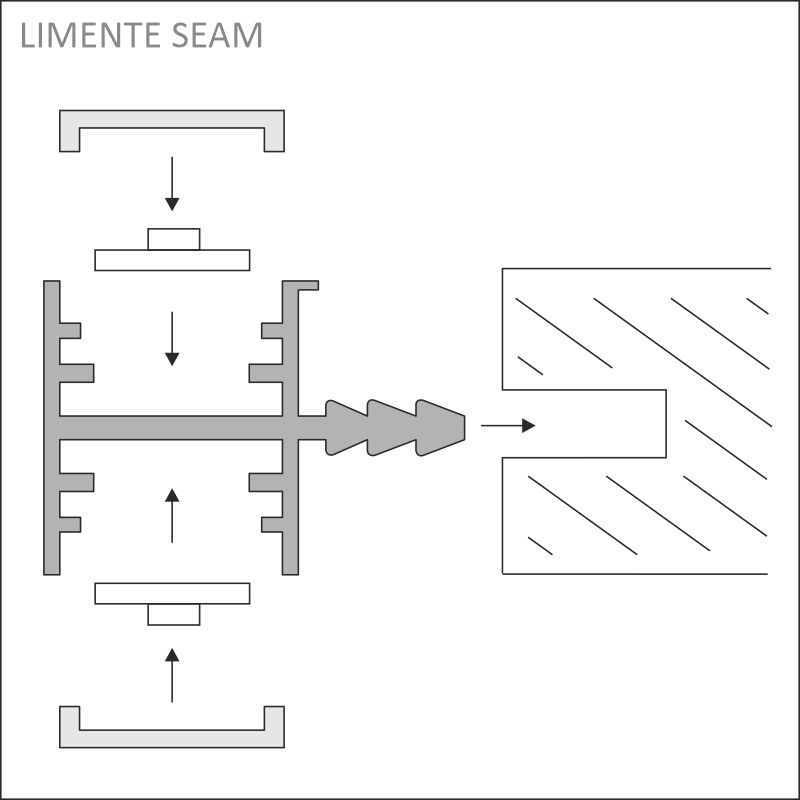

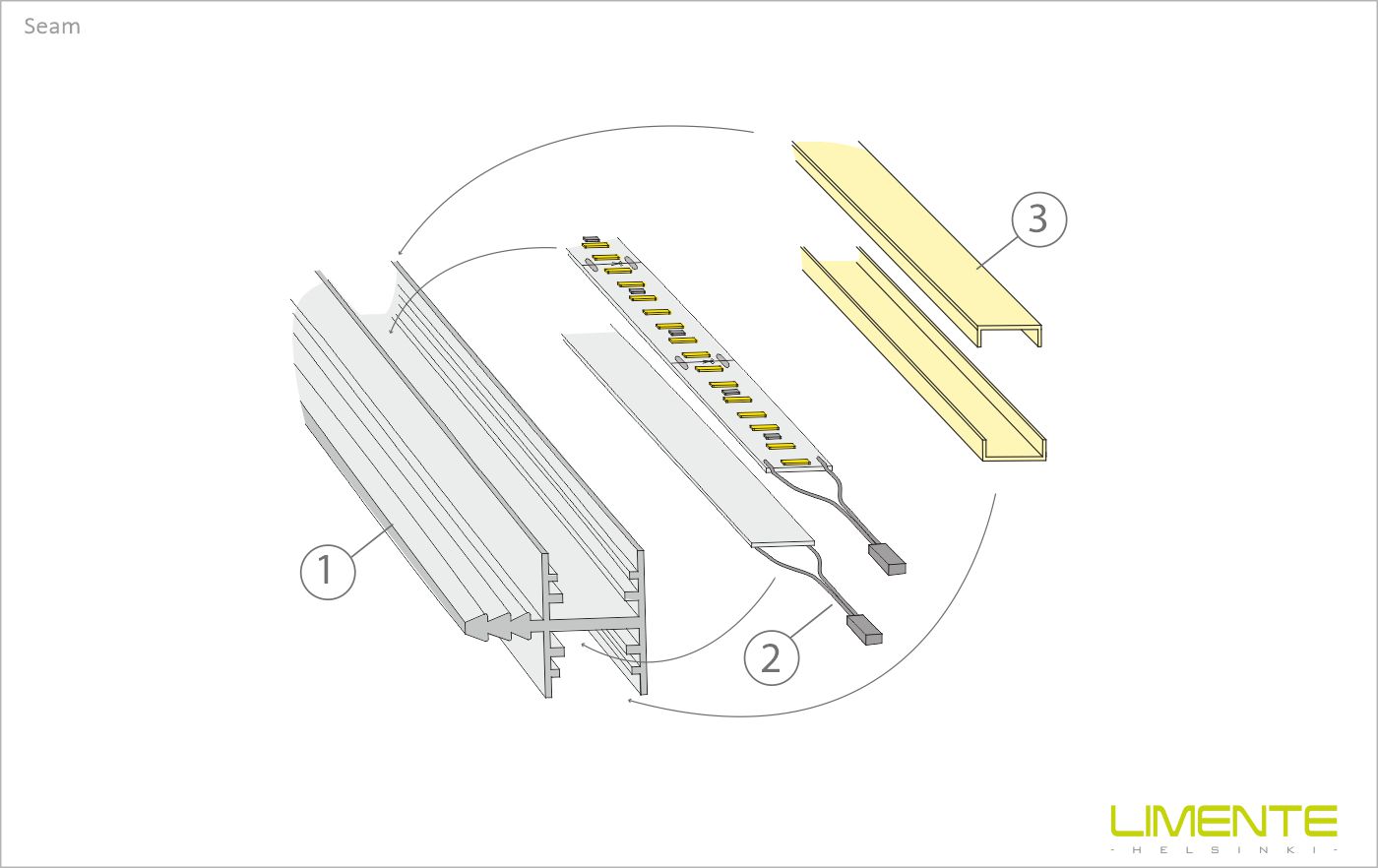

When installing, cut the profile into the desired length and attach in place with the installation tools and clips included. Remove the double-sided tape from the light strip and press onto the profile. Finally, connect the power supply cable to the light strip and to the power supply. All electrical connections are done with quick connectors.
