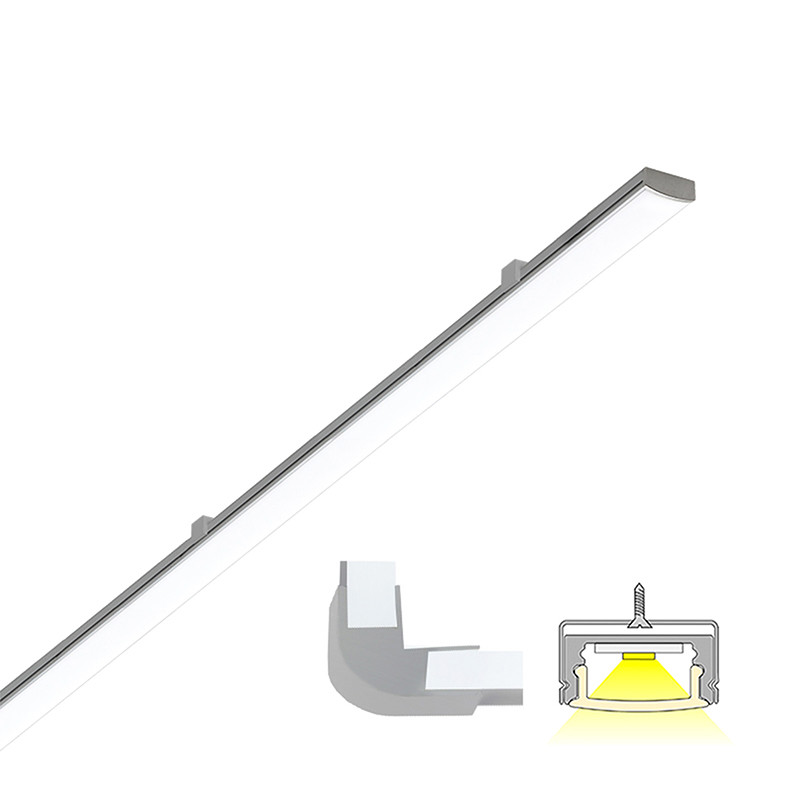

LIMENTE LINEA CCT LUX 2700 - 6000 K, IP44, aluminium | 1500 lm/m, CRI>90

Reference: LINEACCTALU
Supplier reference:
LINEA CCT LUX aluminium

171,12 €(138,00 € tax excl)

Ref: Supplier ref: Product variations: Availability Add to brochure:
682314 4118916 LINEA 20, 2 m, alu, 2700-6000K: In stock MyLimente 682315 4118917 LINEA 40, 4 m, alu, 2700-6000K: In stock MyLimente 640560 4009749 SMART 560 CCT-receiver: In stock MyLimente 640561 2600867 SMART 561 CCT-dimmer, white glass: In stock MyLimente 640563 2600869 SMART 563 CCT-dimmer, black glass: In stock MyLimente 640562 2600868 SMART 562 CCT-dimmer, white: In stock MyLimente LED28030 4009738 Driver 30 W: In stock MyLimente LED28060 4009740 Driver 60 W: In stock MyLimente LED28100 4009741 Driver 100 W: In stock MyLimente 66110 4009734 Extension cable 3,0 M, CCT: In stock MyLimente

A versatile light profile fixture with color temperature adjustment

LIMENTE LINEA IP44 CCT is a part of LIMENTE CCT collection, which is not only dimmable but the color temperature is adjustable. When adjusting the color temperature of lighting in your home, you can change the ambience to suit any mood.

LIMENTE LINEA IP44 CCT is a versatile light fixture suitable for either working light or mood light. The fixture can be used in kitchen workspace but also to provide indirect lighting when placed above upper cabinets, in plinths, in ceilings or inside a wardrobe or any other space, where light is needed.

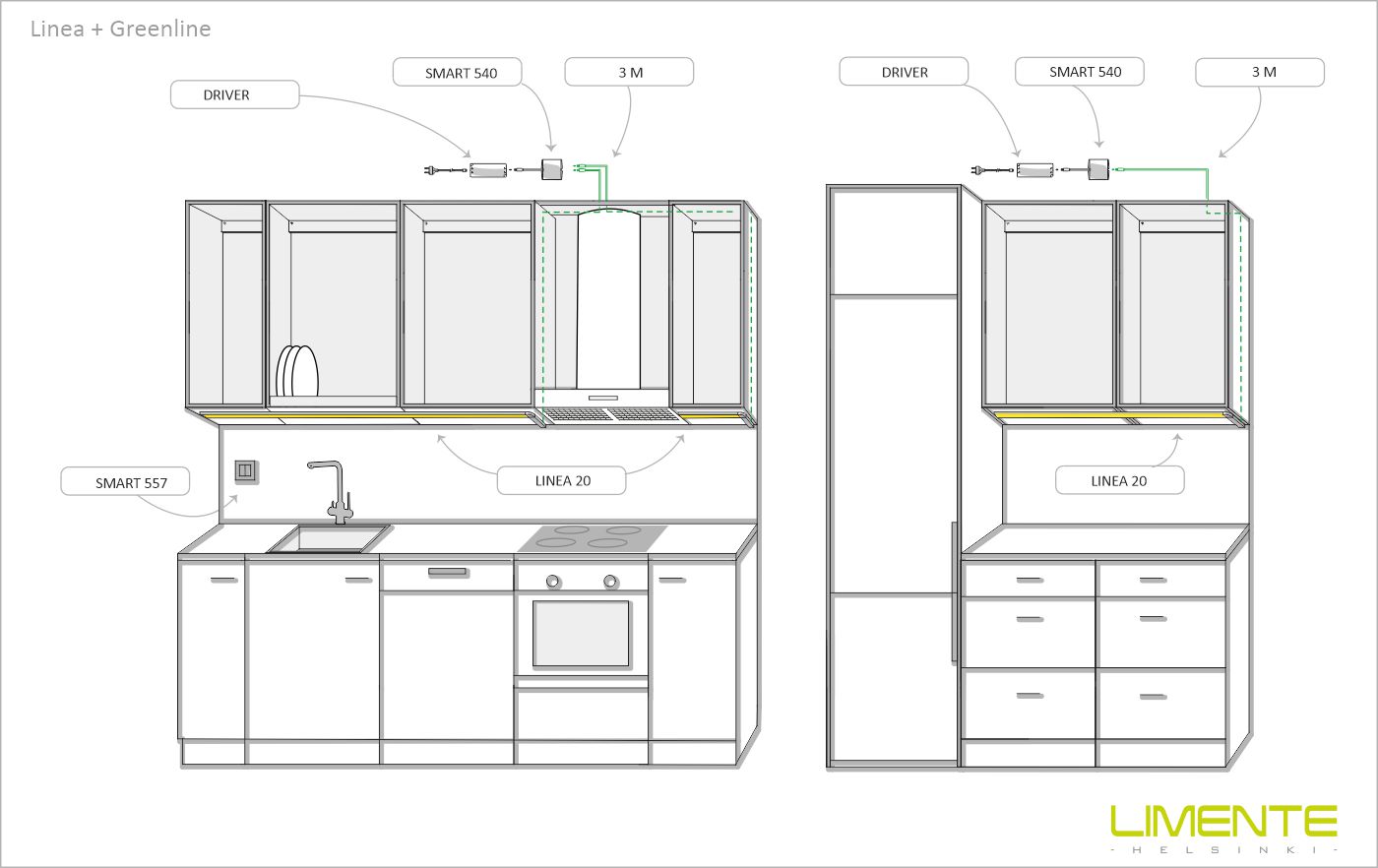

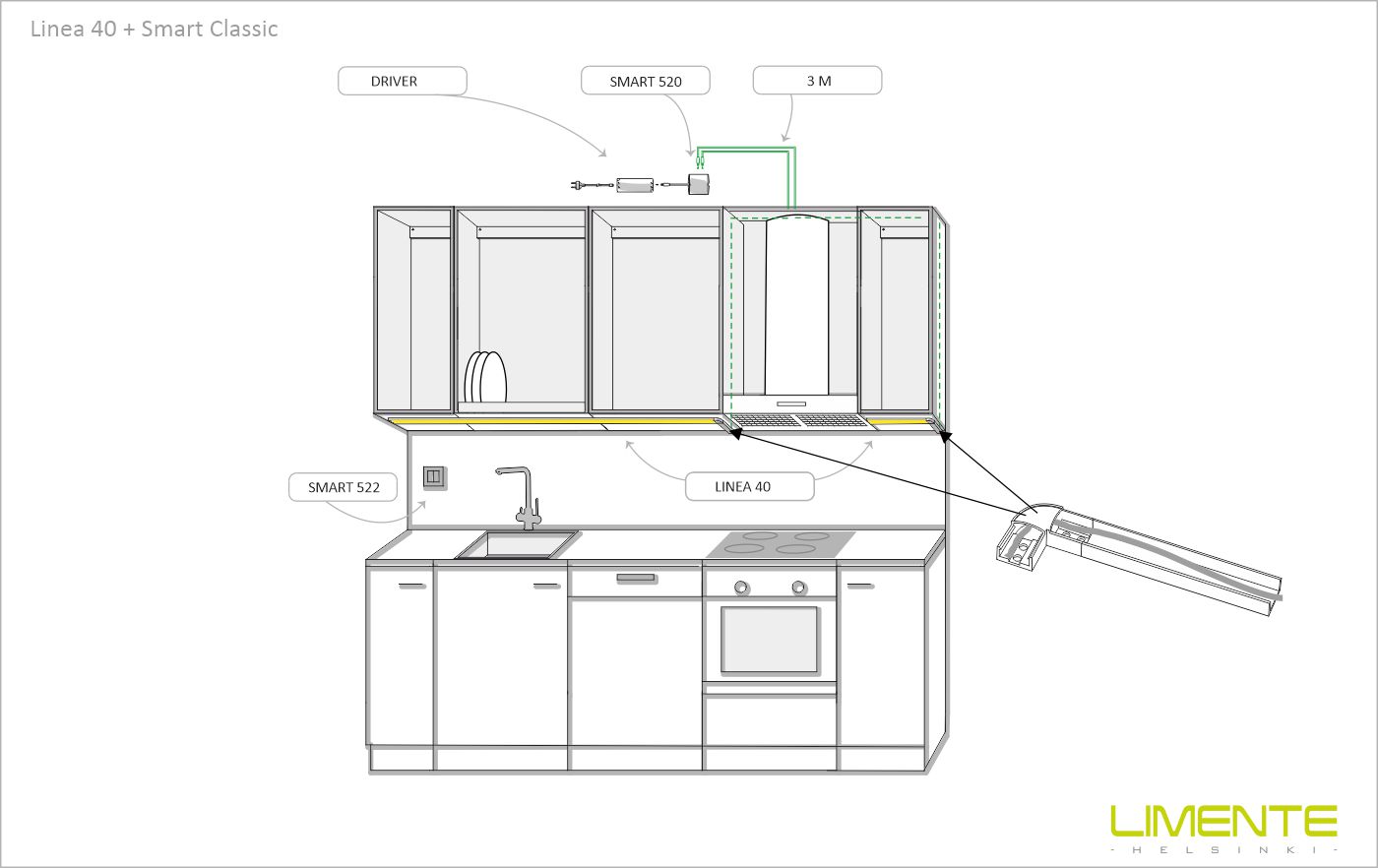

See ”Installation pictures” for tips on how to use LINEA IP44 CCT as working lighting in a kitchen workspace but also as indirect lighting when placed above upper cabinets or inside a wardrobe! In kitchen workspaces the fixture is installed near the front edge of the kitchen upper cabinet. LIMENTE LINEA profile fixtures are available in multiple lengths (2-6m) and three different color temperatures (3000K, 4000K and 2700K-6000K). It is also available in alumnium, white and black color. The profile itself has a standard length of 2m and can be shortened to a desired length.

In addition to LIMENTE LINEA IP44 CCT, LIMENTE LINEA is available in two different versions: the standard version LIMENTE LINEA IP44 B (IP44, Ra>85, 4000K) and the LUX version LIMENTE LINEA IP44 LUX (IP44, Ra>90, 3000K and 4000K).

To use LIMENTE LINEA, you’ll need a suitable 24V power supply. Compatible products are mentioned alongside the product. The profile, the led strip and the power supply are also sold separately. N.B.! The power supply must be ordered separately.

Dimming and lightcontrol

Appropriate lighting for any occasion is made easy with our dimming and lighting control system. You can easily change the lighting and ambience in your home from efficient and bright to dim and cosy by dimming your LIMENTE LINEA IP44 CCT with our wireless system. You can use the same switch to adjust all the LIMENTE CCT lights in the room. The light and color temperature adjust smoothly at the same time while creating ambience for working, entertaining or any mood in between.


LIMENTE LINEA IP44 CCT requires the dimmer LIMENTE SMART 560 (no. 640560) and the wireless wall switch (no. 640561 and 640562) from our LIMENTE SMART series to use.

The dimmer is installed between the power supply and the fixture. The dimmer includes a similar manifold to the one included in the power supply. You can connect up to 6 LIMENTE lights to one dimmer, as long as the maximum load (W) of the power supply is not exceeded.

Installation

LIMENTE LINEA IP44 CCT is fast and easy to install with the installation tools included.


The power supply cable is put in place (e.g. hidden behind a cabinet) so that the male connector comes close to the power supply and the female connector comes near the LINEA profile. A power supply cable at both ends of the fixture enables LINEA IP44 CCT to be used as two separate lights. The fixture can be shortened to a desired length at 6,6 cm intervals. There is a 5cm + 300cm long power cord at each end of the fixture. An extension cord (3m, no. 66110) can be ordered, in case a longer power cord is needed. Extension cords can be fitted with a maximum on 1 pcs of fixtures, with a maximum cord length of up to 6m. Please note the adequate length of the cord and the maximum load (W) of the power supply.

LINEA IP44 CCT can also be used in its full length (2 or 4 m). When wanting to use the whole length, simply cut off the power supply cable at the other end.

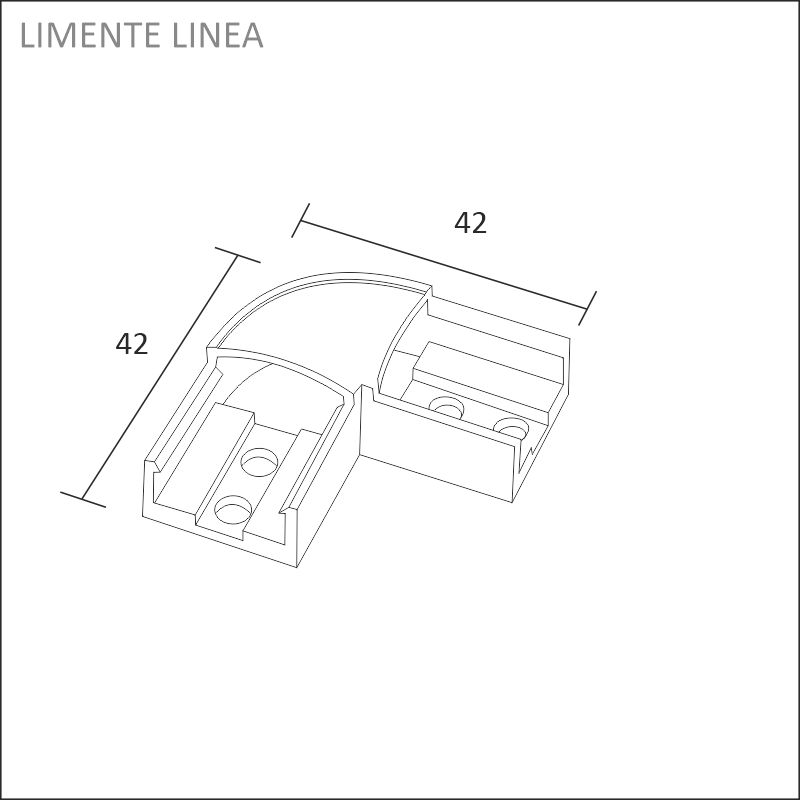

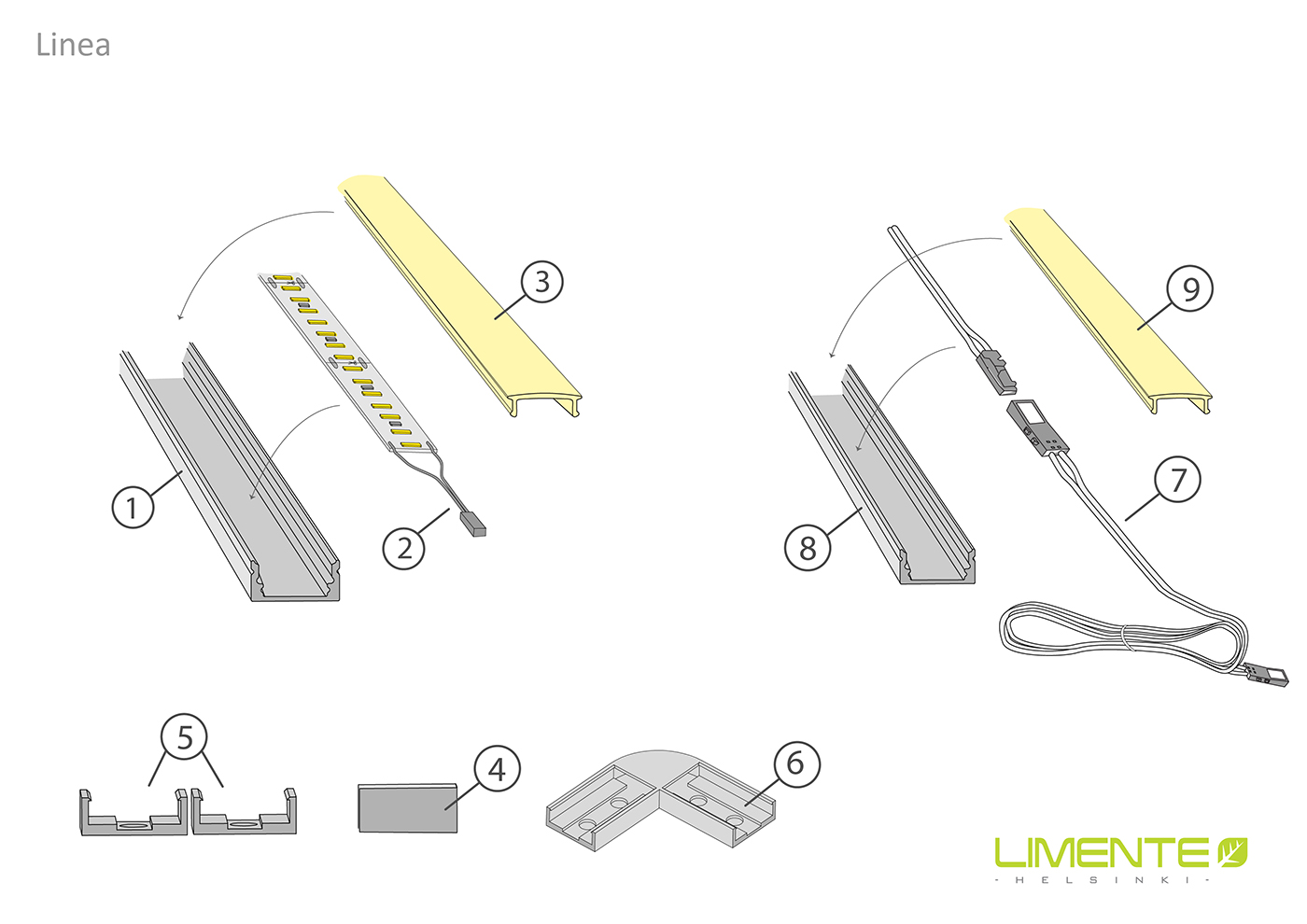

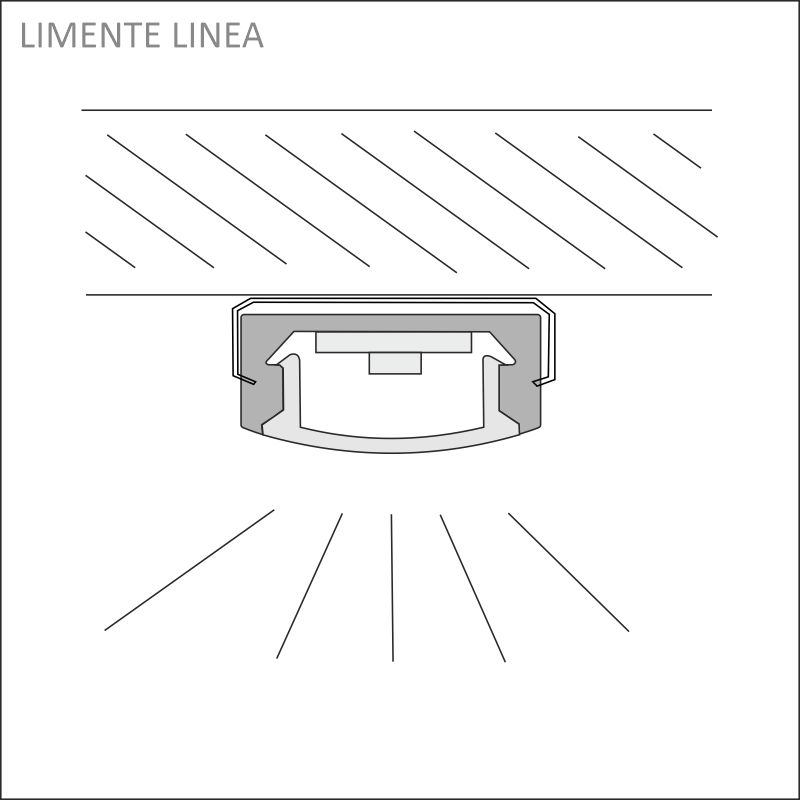

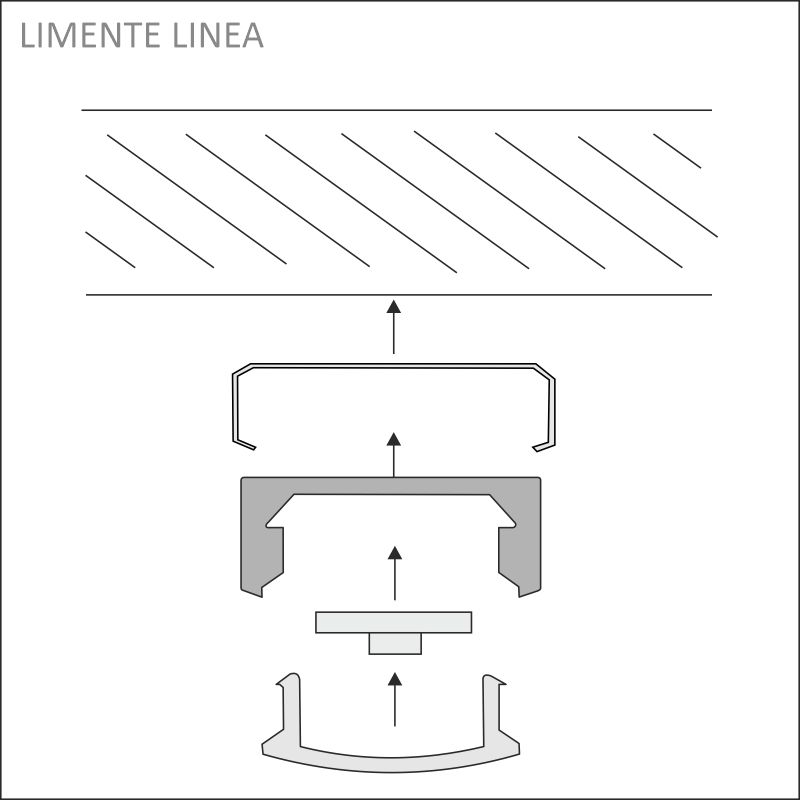

When installing, cut the profile into the desired length and attach in place with the installation tools and clips included. Remove the double-sided tape from the light strip and press onto the profile. Finally, connect the power supply cable to the light strip and to the power supply. All electrical connections are done with quick connectors.

Package contents

Choose product from drop-down menu above and you can see it’s content here.

Technical data

Fixture color
Alulook
Light source
LED
Installation
Surface mounting
Current supply
CCT, hole diameter 12 mm
Light flux
1500 lm/m
Efficiency
105 lm/W
Color temperature
2700 - 6000 K
CRI value
> 90
Lifetime
54.000h (L80B10)
Enclosure class
IP44
Voltage
24 V DC
